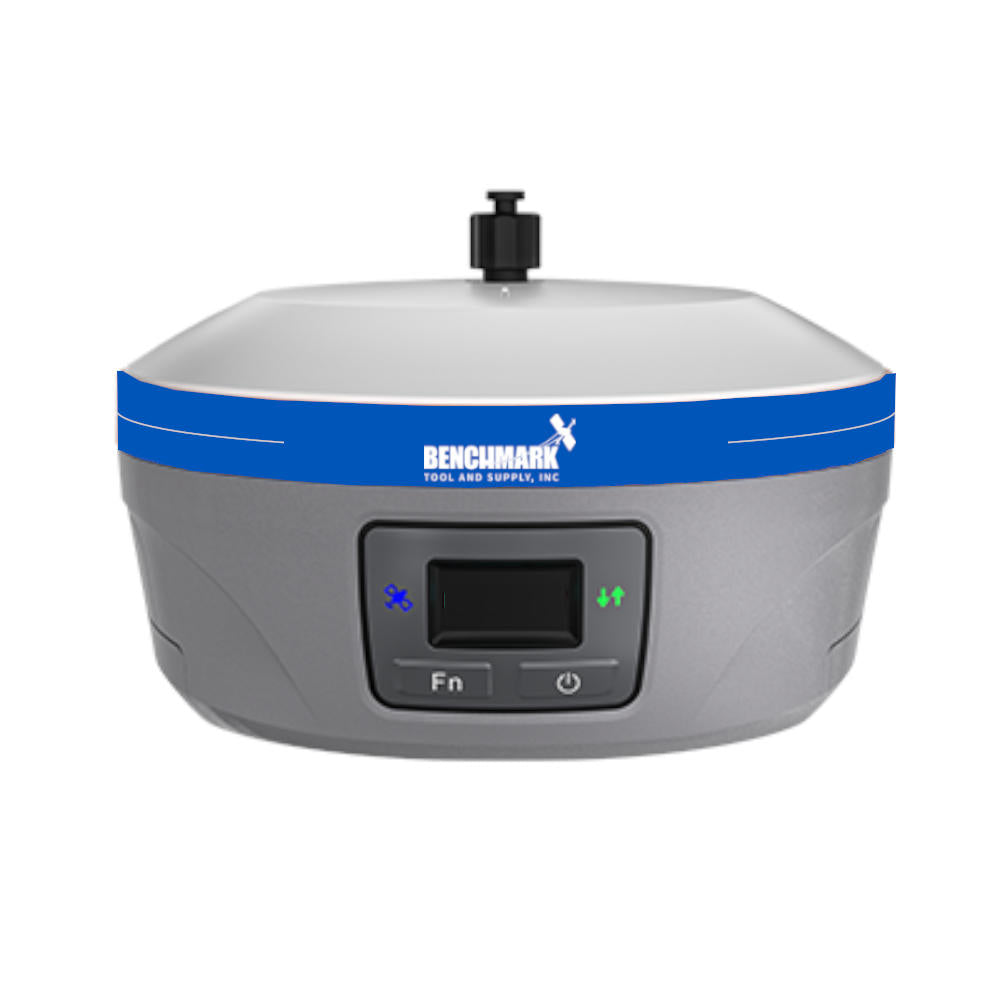

Benchmark Supply iBase Integrated GNSS Receiver

Roll over image to zoom in Click on image to zoom

Benchmark Supply iBase Integrated GNSS Receiver

Name: Benchmark Supply iBase Integrated GNSS Receiver
Brand: Benchmark Tool & Supply
SKU: 8001 010 170
Price: 8990.0 USD
Availability: InStock

Benchmark Tool & SupplySKU: 8001 010 170

Price:

$8,990.00 USD

Shipping calculated at checkout

Stock:

Only 1 unit left

Quantity:

Store Pickup: List of available stores available on the Checkout page.

Share this product

Specifications

Channels: 1408 channels
Supported Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, NavIC/IRNSS
Initialization: <10s
RTK Accuracy: H: 8 mm + 1 ppm; V: 15 mm + 1 ppm
PPK Accuracy: H: 3 mm + 1 ppm; V: 5 mm + 1 ppm
IMU Rate: 200 Hz
Display: 2 LED; 0.96" OLED Display
Operating Hours: Up to 25 hours
IP Protection: IP67
Power Source: 7.4V/7Ah Li-Ion Battery
Operating Temperature: -40°F to +149°F (-40°C to +65°C)

Product Description

The Benchmark Supply's iBase is a fully integrated GNSS base station engineered for professional surveyors who demand simplicity without compromising performance. Eliminating the need for external radios, batteries, and cables, it delivers real-time RTK corrections with up to 25 km UHF range through its built-in 5-watt radio. The system features automatic UHF interference checks to optimize signal quality and ensure consistent connectivity on challenging sites.

Powered by a 1408-channel GNSS board, the iBase supports GPS, GLONASS, Galileo, BeiDou, QZSS, and IRNSS, while also offering tilt compensation and AUTO-IMU for up to 60° pole tilt. Its rugged IP67-rated design withstands harsh environments, with a dual-battery system that provides up to 12 hours of operation. For added flexibility, the iBase can act as a UHF repeater or connect via 4G to broadcast GNSS corrections to multiple rovers.

Brochures & Manuals

Benchmark Supply iBase Integrated GNSS Receiver Technical Datasheet
