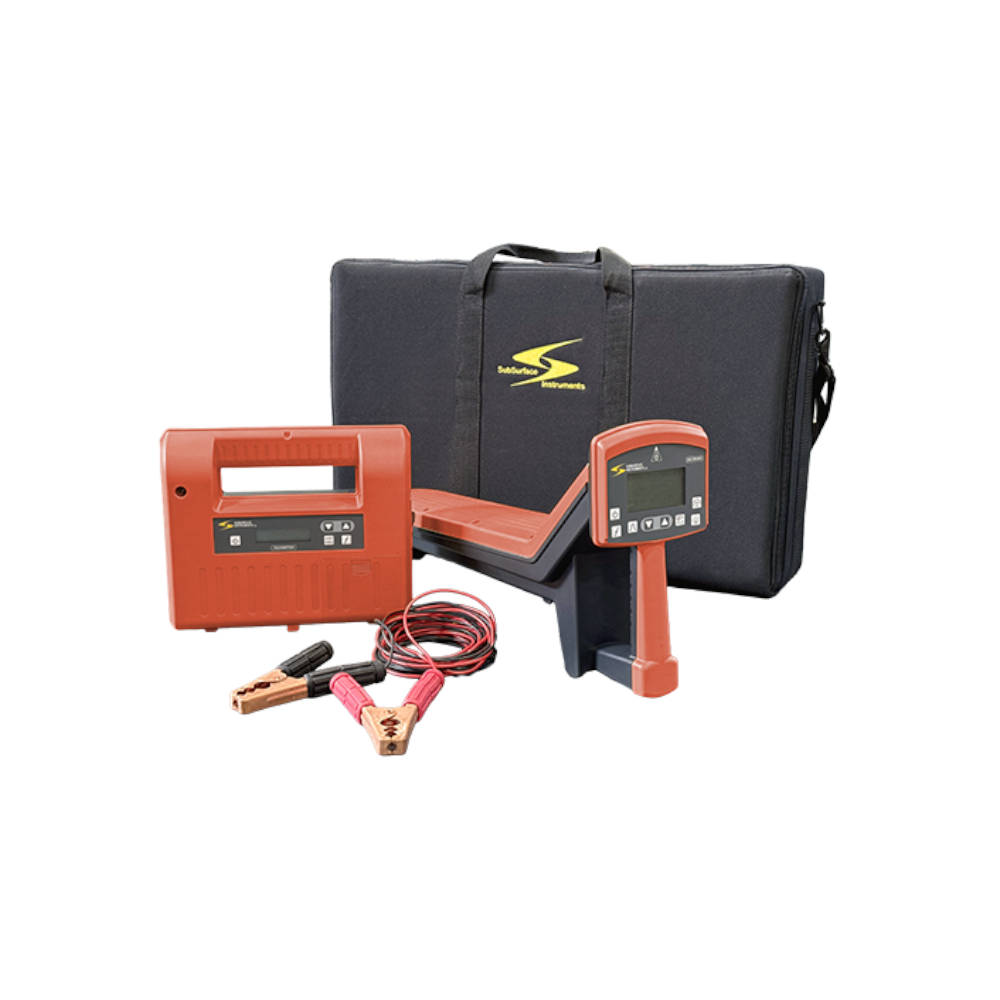

SubSurface PL-3000 Pipe and Cable Locator System

PL-3000 Receiver

• Frequencies: 8 kHz, 27 kHz, and 83 kHz
• Passive Detection Mode: AC/CP Mode, 50 Hz and 60 Hz
• Level Change Display: LCD Bar Graph and Pitch Change with 3-Digit Reception Level Display
• Depth Measurement Display: 3-Digit Number Display on LCD Screen
• Current Measurement Display: 3-Digit Number Display on LCD Screen
• Power Supply: DC9V, 6 AA-Size Batteries
• Power Rating: 2 VA
• Battery Life: 8 Hours with No Signal; 5 Hours with Volume Set to Large and Backlight On
• Communication: Bluetooth 2.1 + EDR Class 2
• Usage Environment: Outdoor Use at Altitudes Below 2,000 m

PL-3000 Transmitter

• Frequencies: 8 kHz, 27 kHz, 83 kHz, Active
• Maximum Output: 3.0 W
• Transmitting Mode: CW, Non-Modulation
• Power Supply: DC12V, 8 D-Size Batteries or External DC12V Power Source
• Power Rating: 12 VA
• Battery Life: Approximately 8 Hours in Induction Mode at Maximum Output; Approximately 8 Hours at Level 4
• Usage Environment: 14°F to +131°F (-10°C to +55°C), Outdoor Use at Altitudes Below 2,000 m

The SubSurface PL-3000 Pipe and Cable Locator System is designed to help operators locate buried metallic pipes and cables with clear visual, audible, and vibration-based guidance. Its large LCD screen and straightforward key panel provide an easy-to-follow operating interface, while vibration, LED light, and buzzer indications help make target identification clear in active field environments. The receiver also includes push-button depth measurement and AC/CP mode for locating buried electric cables.

For different locate conditions, the PL-3000 supports 8 kHz, 27 kHz, and 83 kHz operating frequencies, allowing the operator to select the appropriate frequency for the site and application. The receiver includes a self-stand attachment for convenient operation. With a 3-watt transmitter and Bluetooth communication, the PL-3000 provides a practical setup for underground pipe and cable locating.

• PL-3000 Receiver
• PL-3000 Transmitter
• Direct connection Leads
• Receiver's Battery Holder
• Padded Carrying Case

• PL-3000 Pipe and Cable Locator Product Datasheet
