SubSurface Enigma 3 Hydrophone Logger System

• Number of Data Loggers: 3
• Data Logger Sensor Type: Integral Accelerometer
• Data Logger Frequency Range: 1 to 2,400 Hz
• Data Logger Sensitivity: 10 V/g
• Data Logger Attachment: Integral Magnet
• Hydrophone Type: Externally Connected Hydrophone
• Hydrophone Frequency Range: 1 to 2,400 Hz
• Hydrophone Sensitivity: -195 dB
• Hydrophone Attachment: 1 in. NPT Connection with Pipe Adapters
• Sampling Rate: 4,860 Hz
• Sampling Resolution: 24-Bit
• Number of Epochs: 1, 2, or 3
• Epoch Duration: 60 Seconds
• Maximum Total Recording Time: 180 Seconds
• Logger Power Type: Dual Lithium Cells
• Logger Battery Replacement: At Factory or Service Center
• Logger Operating Life: More Than 5 Years
• Logger Material: Aluminum
• Logger Waterproof Rating: Submersible to IP68
• Logger Operating Temperature: 14°F to 140°F (-10°C to +60°C)
• Host Communication Type: USB
• Host Communication Rate: 2.5 Mbits/sec
• Data Saved into Case: One Run (8 Correlations)
• Data Memory: 32 MB Static RAM
• Logger Communication Type: Optical
• Logger Communication Rate: 2.5 Mbits/sec
• Case Power Supply Type: User-Replaceable Alkaline 4-Cell Pack
• Case Capacity: Holds 8 Loggers
• Case Material: Rugged High-Impact Plastic
• Case Waterproof Rating: IP65
• Case Operating Temperature: 14°F to 140°F (-10°C to +60°C)

The Enigma 3 Hydrophone Data Loggers provide a specialized leak location solution for plastic pipes and large-diameter water mains. Unlike external vibration sensing alone, the hydrophones connect directly to the water network and detect leak-generated pressure waves traveling through the water column. This approach improves sensitivity over greater distances and helps crews investigate pipe networks where leak signals may be difficult to detect from the outside of the pipe.

The three-logger system records acoustic data for multi-point correlation analysis and can be programmed for one, two, or three sampling periods to help separate constant leak noise from temporary water use. Narrow band filtering supports analysis of low-frequency signals and can produce usable correlation results across longer distances. With external hydrophone connections, 24-bit sampling resolution, IP68-rated loggers, and an eight-position rugged transfer case, Enigma 3 Hydrophone is built for repeatable field leak surveys and clear software-based analysis.

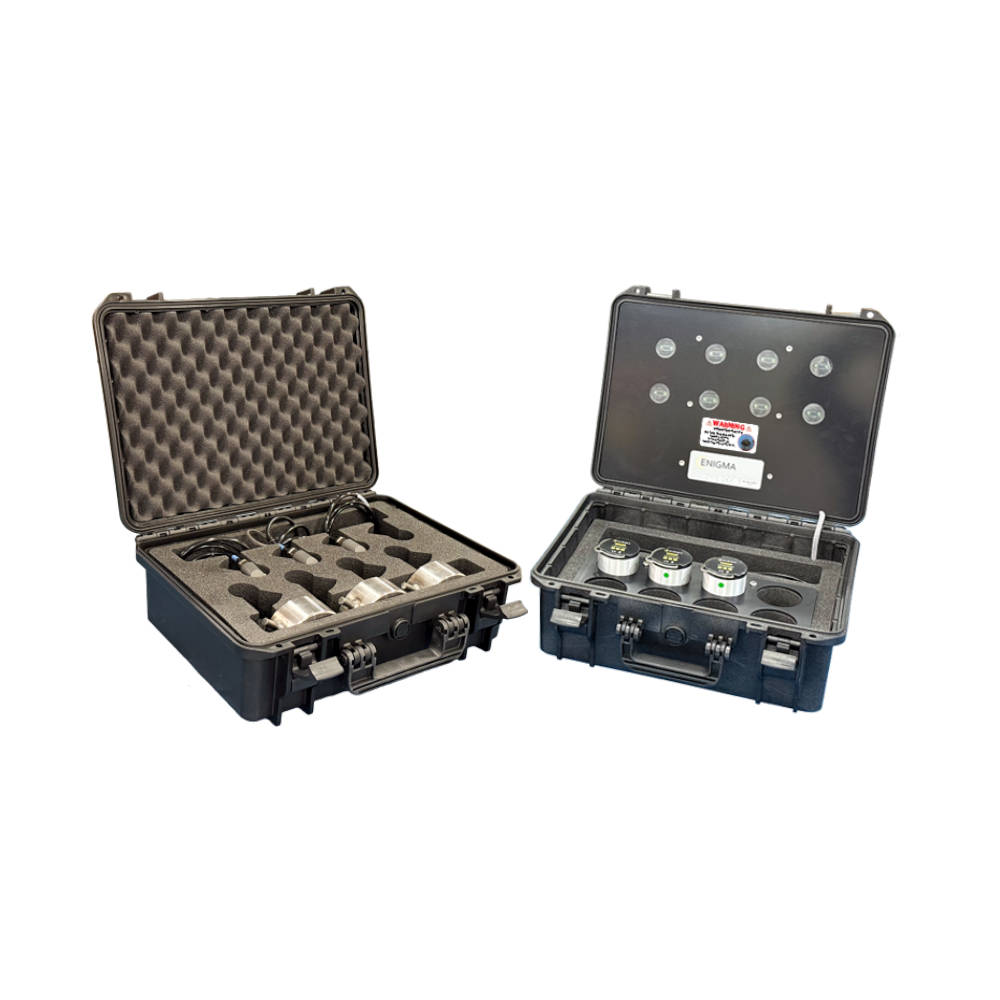

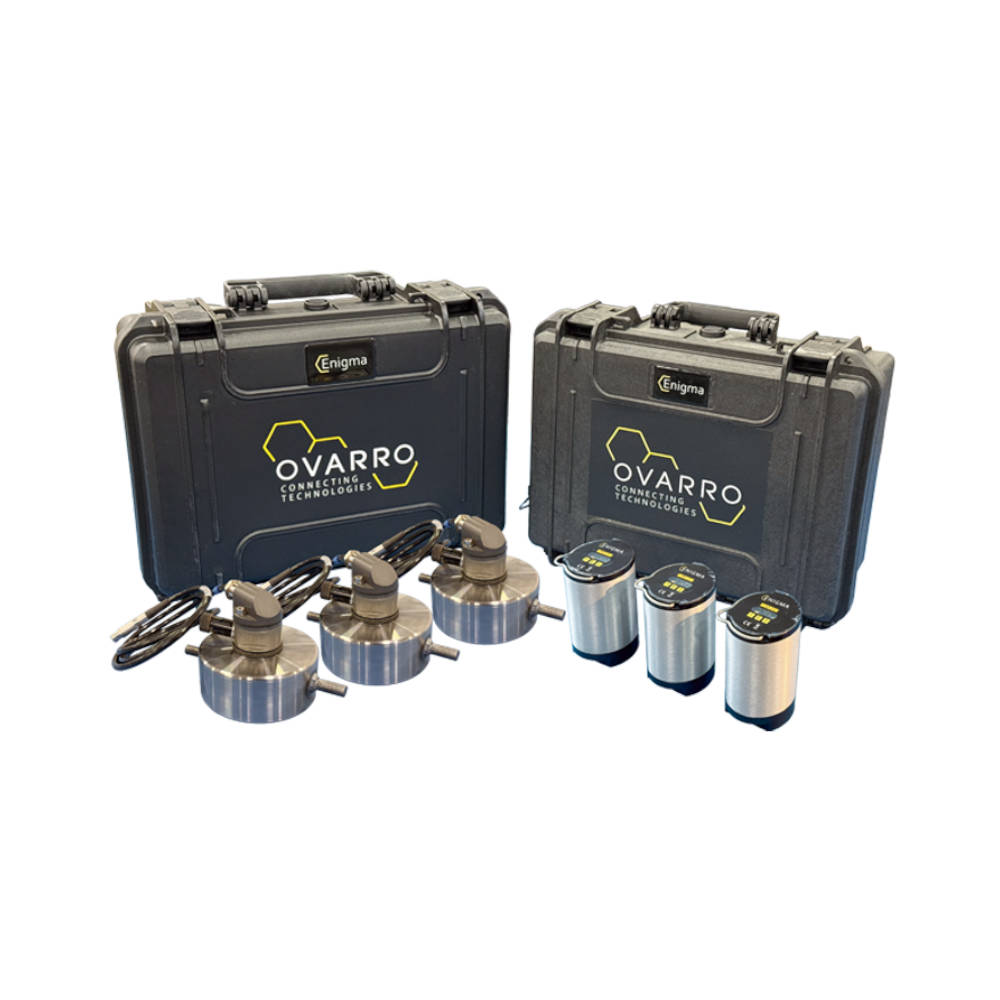

• (3)x Data loggers w/ magnet base
• (3)x Hydrophone and cable kits
• (3)x SS 2.5” Hydrant Caps
• Data transfer USB cable
• Eight position data transfer case
• Data transfer USB cable
