SubSurface Enigma 3 Hybrid Logger System

• Logger Configurations: Standard Vibration Loggers and Hydrophone Loggers
• Standard Logger Quantity: 3
• Hydrophone Logger Quantity: 3
• Maximum Correlations per Standard Logger Run: Up to 3
• Maximum Correlations per Hydrophone Logger Run: Up to 3
• Correlation Use: Standard and Hydrophone Loggers Are Used Separately and Are Not Intended to Be Mixed in the Same Correlation Run
• Sensor Types: Externally Connected Hydrophone and Integral Accelerometer
• Hydrophone Frequency Range: 1 to 2,400 Hz
• Standard Sensor Frequency Range: 1 to 2,400 Hz
• Hydrophone Sensitivity: -195 dB
• Standard Sensor Sensitivity: 10 V/g
• Hydrophone Attachment: 1 in. BSP Connection with Pipe Adaptors
• Standard Sensor Attachment: Integral Magnet
• Sensor Material: Aluminum
• Sensor Ingress Protection Rating: Submersible to IP68
• Sensor Operating Temperature: 14°F to 140°F (-10°C to +60°C)
• Maximum Total Recording Time: 180 Seconds
• Sensor Data Memory: 32 MB Static RAM
• Sensor Communication Type: Optical
• Sensor Communication Rate: 2.5 Mbits/sec
• Sensor Power Type: Dual Lithium Cells
• Sensor Battery Replacement: At Factory or Service Center
• Sensor Operating Time: More Than 5 Years with Standard Programming
• Number of Epochs: 1, 2, or 3
• Epoch Duration: 60 Seconds
• Sampling Rate: 4,860 Hz
• Sampling Resolution: 24-Bit
• Host Communication Type: USB
• Data Saved into Case: One Run of 3-Logger Data
• Case Power Supply Type: User-Replaceable Alkaline 4-Cell Pack
• Case Material: Rugged High-Impact Plastic
• Case Ingress Protection Rating: IP65
• Case Operating Temperature: 14°F to 140°F (-10°C to +60°C)

The Enigma 3 Hybrid Leak Correlation System combines standard vibration-sensing loggers and hydrophone-equipped loggers in one package, giving water utility crews two methods for locating leaks in buried water pipelines. The system includes three standard loggers for detecting acoustic vibration at the outside of the pipe and three hydrophone loggers for detecting pressure waves directly within the water column. This allows operators to select the appropriate sensing method based on pipe material, pipe diameter, monitoring distance, and field conditions.

Both logger types are programmed and analyzed through the same host software platform, which processes recorded data and displays pipe sections, logger positions, and calculated leak locations graphically. Standard and hydrophone loggers are used as separate three-logger sets and are not intended to be mixed during the same correlation run. Each setup supports up to three correlations per run, while overnight recording and three sample periods help identify continuous leak noise and reduce confusion caused by temporary water usage.

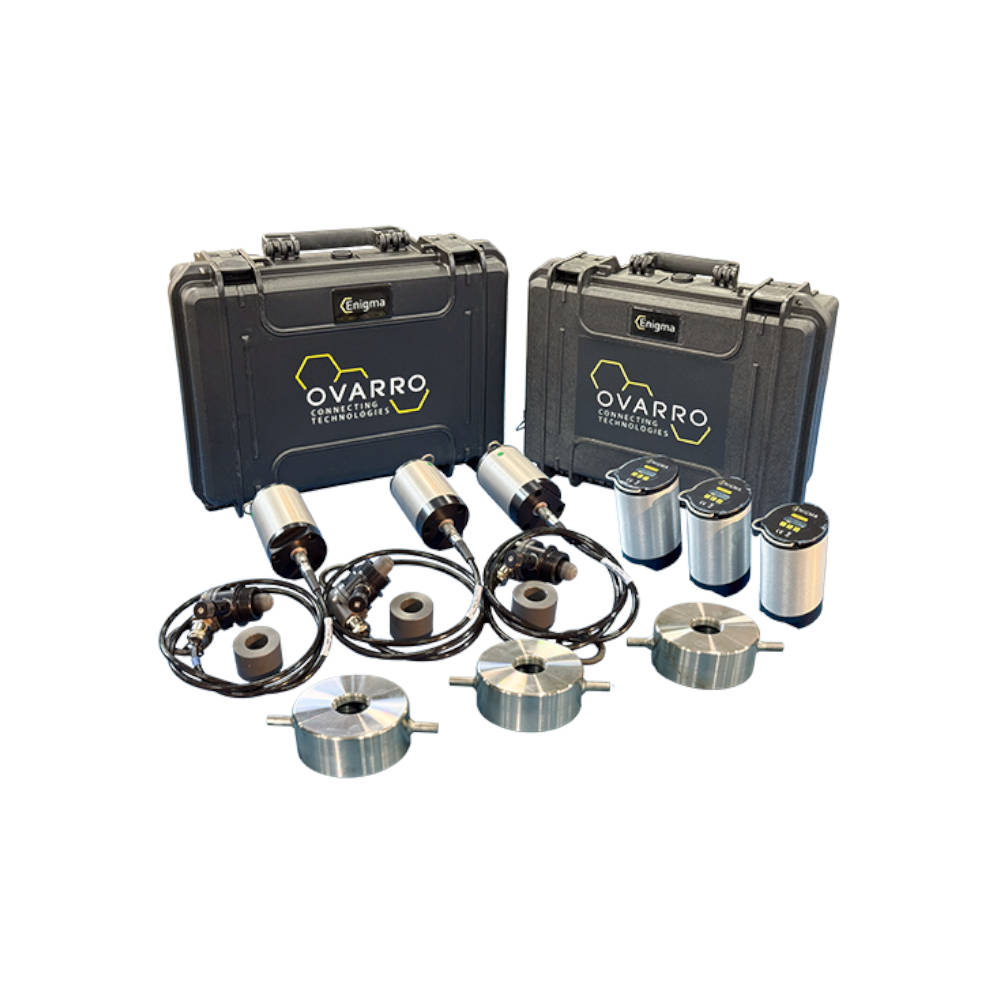

• (3)x Data loggers w/ magnet base
• (3)x Data loggers w/ cable connection
• (3)x Hydrophone and cable kits
• (3)x SS 2.5” Hydrant Caps
• Data transfer USB cable
• Eight position data transfer case
• Hydrophone and caps case
• Data transfer USB cable
