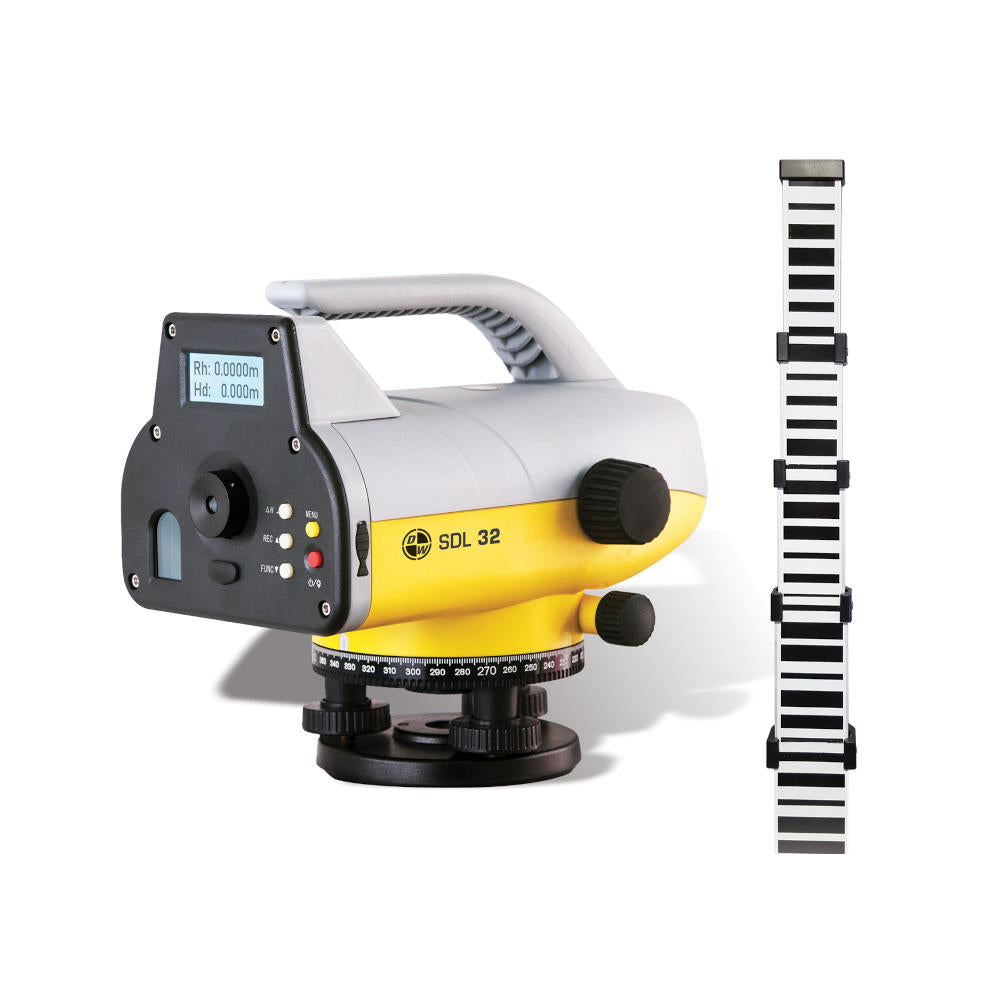

SitePro SDL 32 Digital Auto Level with Barcode Leveling Rod | 25-SDL32

Roll over image to zoom in Click on image to zoom

SitePro SDL 32 Digital Auto Level with Barcode Leveling Rod | 25-SDL32

Name: SitePro SDL 32 Digital Auto Level with Barcode Leveling Rod | 25-SDL32
Brand: SitePro
SKU: 25-SDL32
Price: 1159.0 USD
Availability: InStock

SiteProSKU: 25-SDL32

Price:

$1,159.00 USD

Shipping calculated at checkout

Stock:

Limited Quantity Available

Quantity:

Store Pickup: List of available stores available on the Checkout page.

Share this product

Specifications

Accuracy: ±1.0 mm (1 km double-run leveling)
Measuring Speed: < 3 seconds
Range: Up to 100 m (330 ft)
Memory: Stores up to 1,000 points
Angle Reading: Horizontal circle, 1° graduations
Protection Rating: IP55 (dust and water resistant)
Data Transfer: Micro-USB port, PC interface

Product Description

The SDL 32 Digital Auto Level delivers fast and accurate elevation measurements with one-touch operation. Designed for construction and engineering applications, it offers ±1.0 mm accuracy for 1 km double-run leveling and captures measurements in under 3 seconds. Ideal for high-volume projects, it stores up to 1,000 points internally and features onboard software for tasks like line leveling, delta height, and cut and fill calculations.

With a range of up to 100 meters (330 feet) and barcode staff compatibility, the SDL 32 simplifies data capture and improves field efficiency. A horizontal circle graduated to 1° allows for basic angle readings, and the IP55-rated housing ensures dependable use in challenging outdoor environments. Data can be easily transferred via Micro-USB for streamlined reporting and analysis.

The SDL 32 automatic digital level is designed for super fast measurement speed of less than 3 sec. with the simplicity of the one-push measure and store functionality provides faster, more economical workflow.

One-Button Measuring: Accuracy of ±1.0mm for 1km double-run level
Range up to 100m (330-ft)
IP 55 water protection
Horizontal circle– graduated to 1º
Built-in memory for storing up to 1,000 points
On-board software displays and calculates results for your application such as Line Leveling, Delta Height, Cut & Fill
Interfaces with Micro-USB, Output to computer. Data can be recorded on the job site and simply downloaded by connecting the SDL32 with a PC or laptop

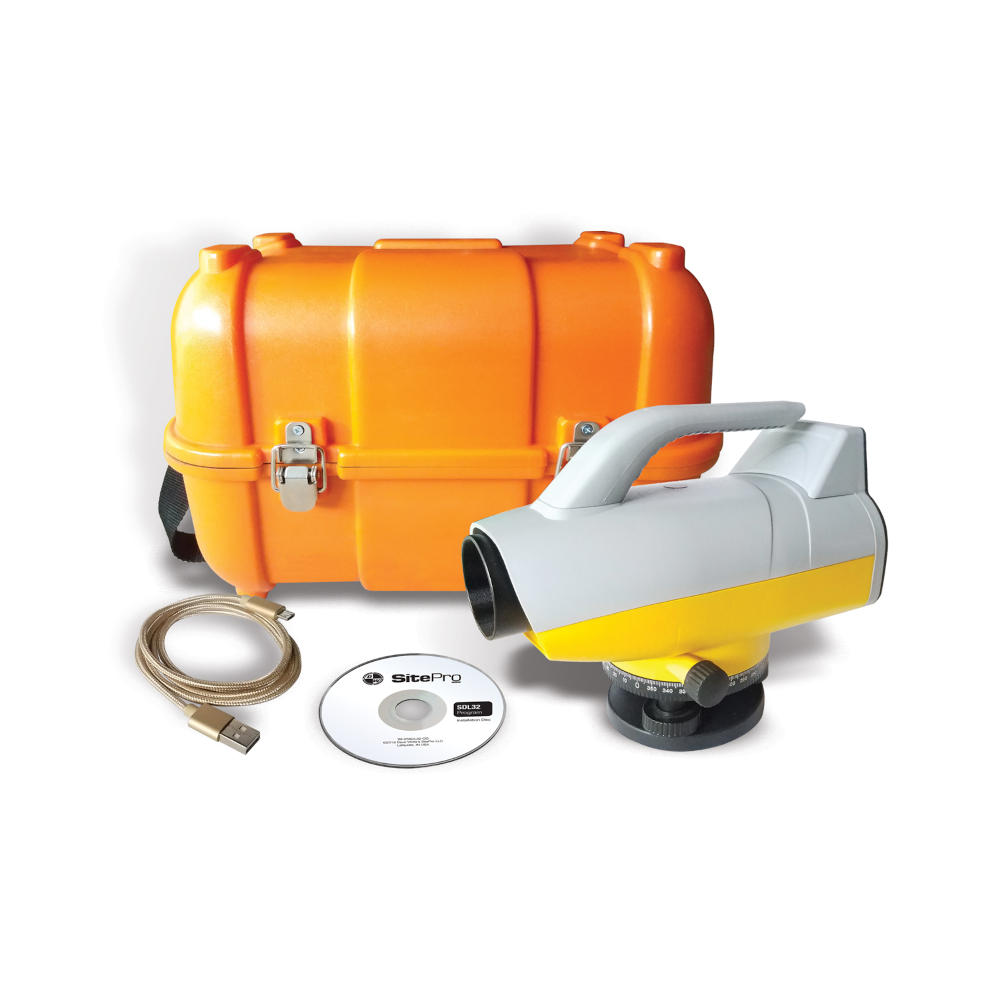

In the Box

SLD 32 Digital Auto Level
Cable; Software Disk
Carrying Case
5m Barcode Leveling Rod

Brochures and Manuals

SDL 32 Digital Auto Level Product Manual
