Nedo 2-Way Industrial Line Tripod for Laser Scanners | 210710

NedoSKU: 210710

Price:
Sale price$1,542.80 USD

Shipping calculated at checkout

Stock:
Limited Quantity Available

Store Pickup: List of available stores available on the Checkout page.

Description

  • Material: Aluminum (tripod head and joints)
  • Minimum Height: Approx. 44.09 in
  • Maximum Height: Approx. 196.85 in
  • Maximum Stable Working Height: 4 m
  • Depth of Shaft: Approx. 157.48 in
  • Retracted Length: Approx. 47.63 in
  • Holding Screw: 5/8" thread
  • Tripod Adapter: 3/8" thread
  • Tripod Plate: Flat, Ø 110 mm
  • Mounting Options: Laser scanner mountable above or below column
  • Elevating System: Indirect gear with toothed rack extension
  • Column: Twist-proof elevating column with centric clamp
  • Graduation: Millimeter scale on telescopic tube
  • Shaft Compatibility: Suitable for shafts up to 205 cm diameter

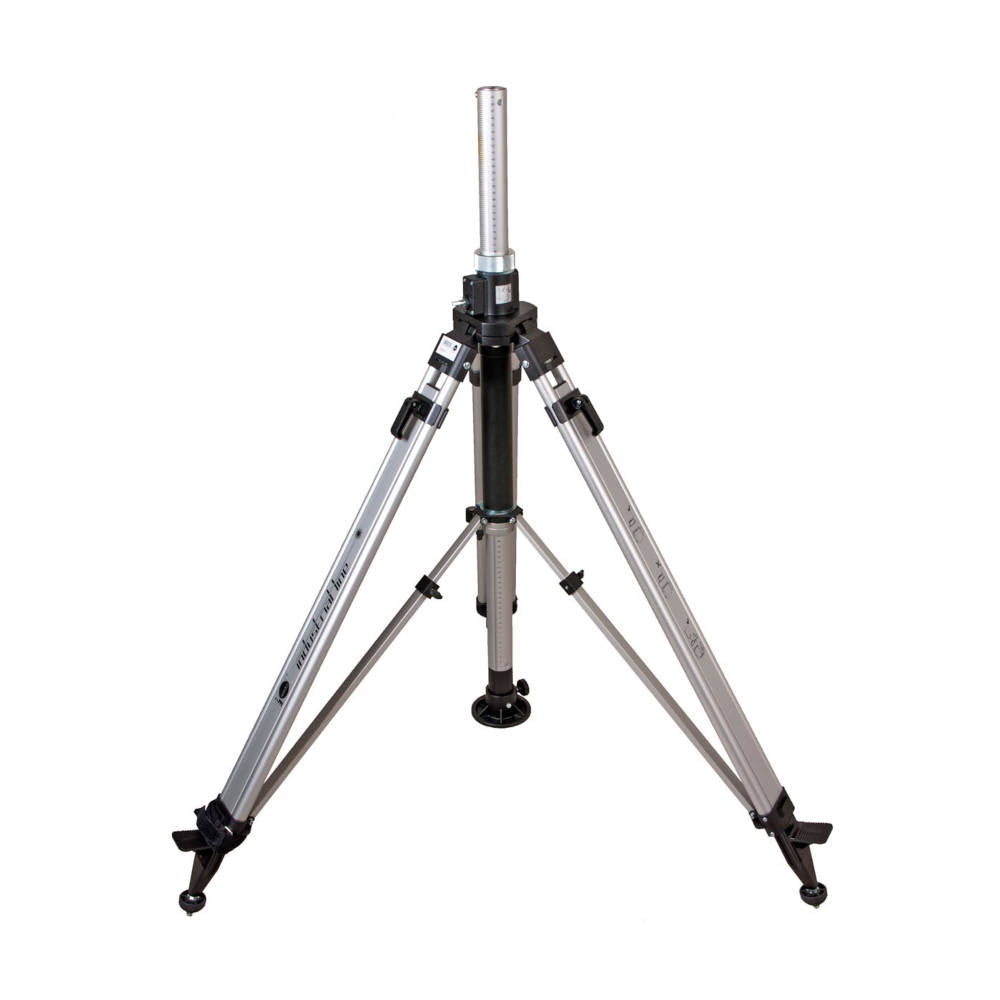

The Nedo Two Way Tripod for Laser Scanners is an industrial-grade elevating tripod engineered specifically for 3D laser scanning applications, including shaft and confined-space work. Its unique two-way mounting design allows the laser scanner to be mounted either above or below the elevating column, providing exceptional flexibility for complex scanning setups. When mounted on top, the scanner can be raised smoothly to the required working height using the indirect gear system, with maximum stability ensured up to a controlled working height of 4 meters.

For shaft applications, the column can be reversed so the scanner mounts beneath the elevating column and is lowered directly into the shaft. The extendable toothed rack system allows the column to reach deep shaft environments, with additional rack elements securely connected using an integrated locking mechanism. Built for demanding industrial use, the tripod features a twist-proof elevating column with centric clamping, millimeter graduations for repeatable height settings, and combi tripod shoes for stable footing on varied terrain. A drill-drive adapter is included for lifting the scanner using a cordless power drill, improving efficiency during setup.

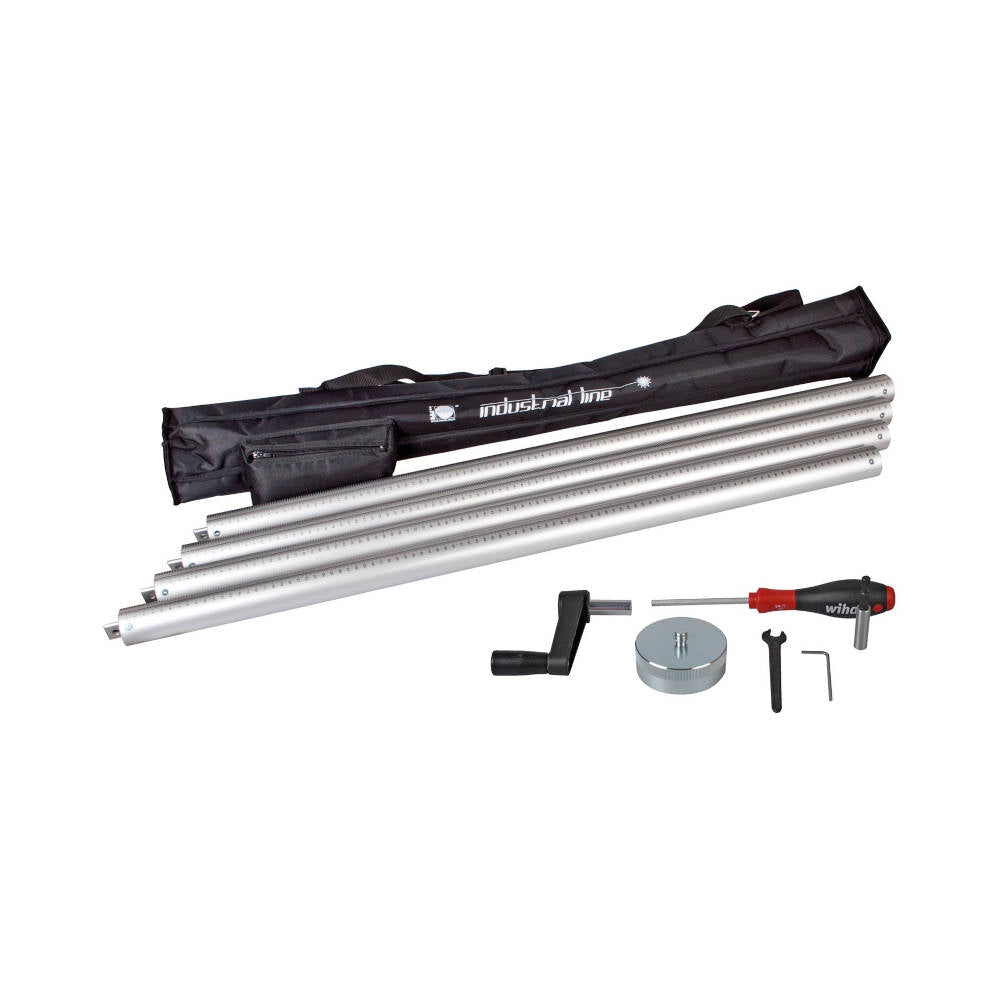

  • Basic gear column
  • 4 rack elements - 1 m each
  • Carrying bag
  • 5 mm allen key
  • Magnetic bit holder for cordless screwdriver
  • Hand crank with magnetic bit holder
  • Combi tripod feets
  • 3/8" tripod adapter
