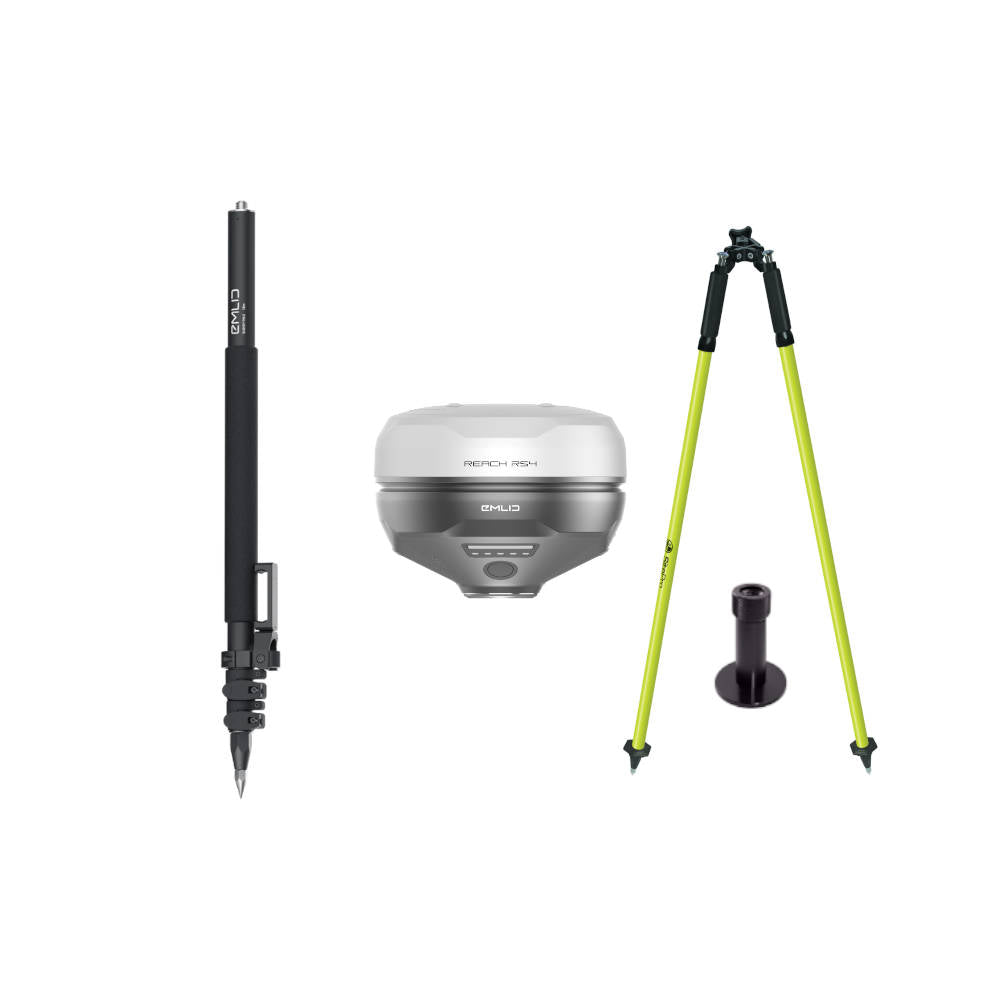

Emlid Reach RS4 Rover Surveying Package | RS4-RSV

Emlid Reach RS4 Rover

• Channels: 672
• Signals: GPS L1C/A, L2C, L5; GLONASS L1OF, L2OF; Galileo E1-B/C, E5a, E6; BeiDou B1I, B1C, B2a, B3I; QZSS L1C/A, L1C/B11, L2C, L5; NavIC L1-SPS Data, L5-SPS
• Update Rate: Up to 10 Hz
• RTK Precision: 7 mm + 1 ppm horizontal, 14 mm + 1 ppm vertical
• Tilt Compensation: RTK + 2 mm + 0.3 mm/°
• Radios: LoRa radio, 868/915 MHz, up to 8 km; UHF radio, 410–470 MHz, TRIMTALK 450S, up to 2W
• Connectivity: LTE modem, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.1, RS-232, USB Type-C
• Correction Protocols: NTRIP, RTCM3
• Position Output: NMEA, LLH/XYZ
• Data Logging: RINEX, NMEA, LLH/XYZ, UBX
• Internal Storage: 16 GB
• Ingress Protection: IP68
• Battery: 5000 mAh Li-Ion, up to 16 hours as an RTK rover with tilt compensation; up to 22 hours of logging
• Operating Temperature: -40°F to +149°F (-40°C to +65°C)
• Weight: 2.04 lbs.

Emlid 1.8m Survey Pole w/Smartphone Mount

• Material: Aluminum
• Extended Length: 1.8m
• Collapsed Length: 0.74m
• Load Capacity: 22.09 lbs.
• Thread: 5/8-11 UNC
• Operating Temperature: -4°F to +158°F (-20°C to +70°C)
• Weight: 1.98 lbs.

The Emlid Reach RS4 Rover Surveying Package gives surveyors and field crews a high-performance RTK rover setup with the core accessories needed for accurate point collection, stakeout, layout, and site measurements. The Reach RS4 is an all-band RTK GNSS receiver built for challenging field conditions, delivering centimeter-level accuracy with strong signal tracking across GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC. With 672 channels, L1/L2/L5/L6 support, and next-generation tilt compensation, the RS4 helps crews collect reliable measurements even in canopy, urban areas, and uneven jobsite environments.

This package includes field accessories: a 1.8 m survey pole with smartphone mount, aluminum thumb-release bipod, and a wide-base topo shoe for added stability. Alongside the hardware, you get a one-year licenses of Emlid Pro Survey Plan and Control Point Corrections TrueRTK (powered by Point One Navigation) for advanced project management and data-sharing. The RS4 supports fast convergence, up to 10 Hz update rate, LoRa and UHF radio connectivity, and 16 hours of operation as an RTK rover with tilt compensation.

• (1)x Reach RS4 receiver with (1)x LoRA Antenna, (1)x UHF Antenna, (1)x USB Cable and (1)x Carrying Case with strap
• (1)x 1.8m Survey Pole w/Smartphone Mount
• Pro Survey Plan Software (1 Year)
• Control Point Corrections TrueRTK (1 Year)
• (1)x Aluminum Thumb Release Anti-Crush Bipod (Fluorescent Yellow)
• (1)x Topo Shoe with Wide Base
