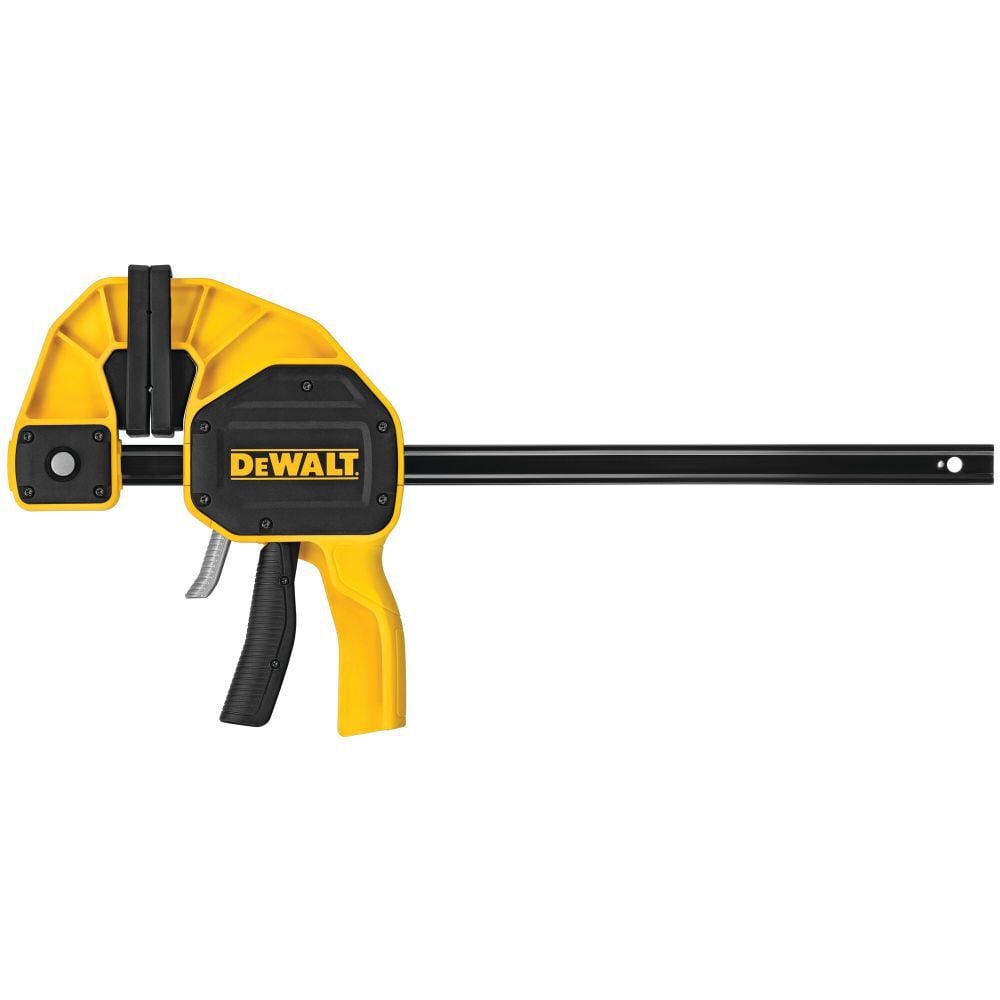

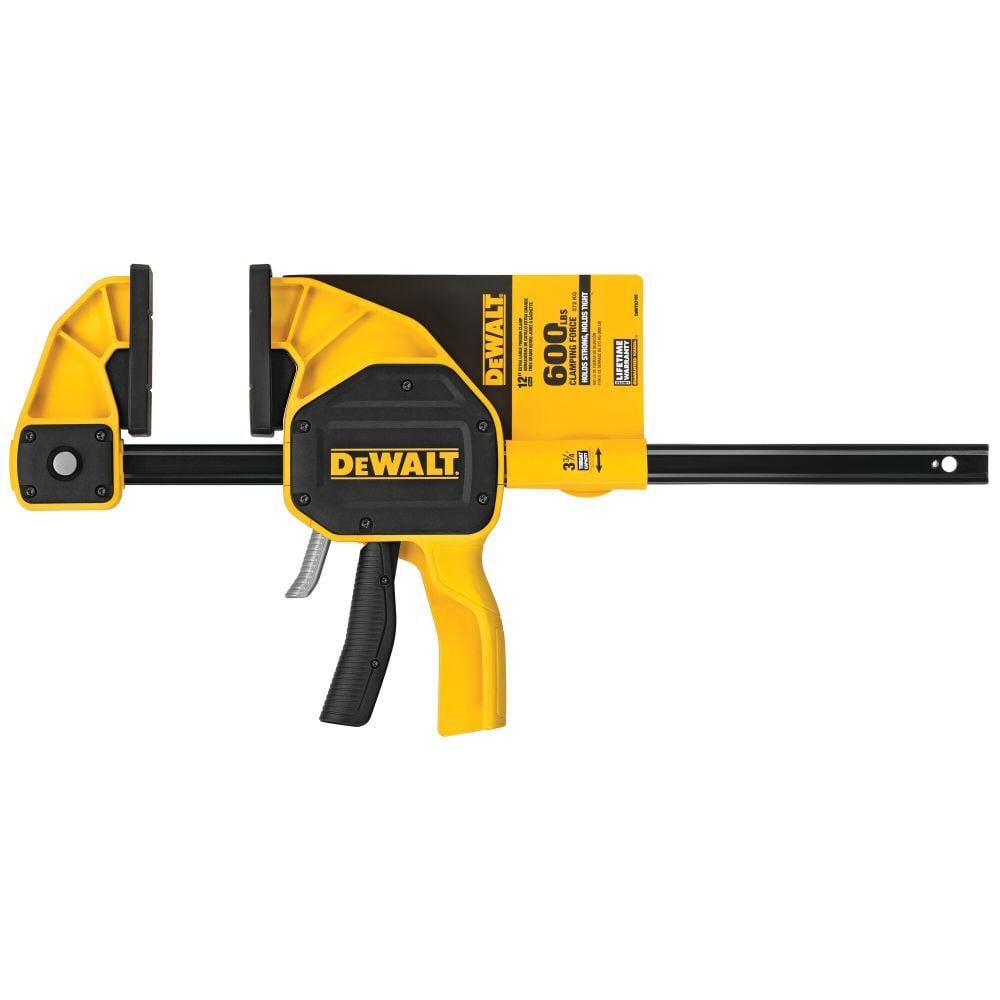

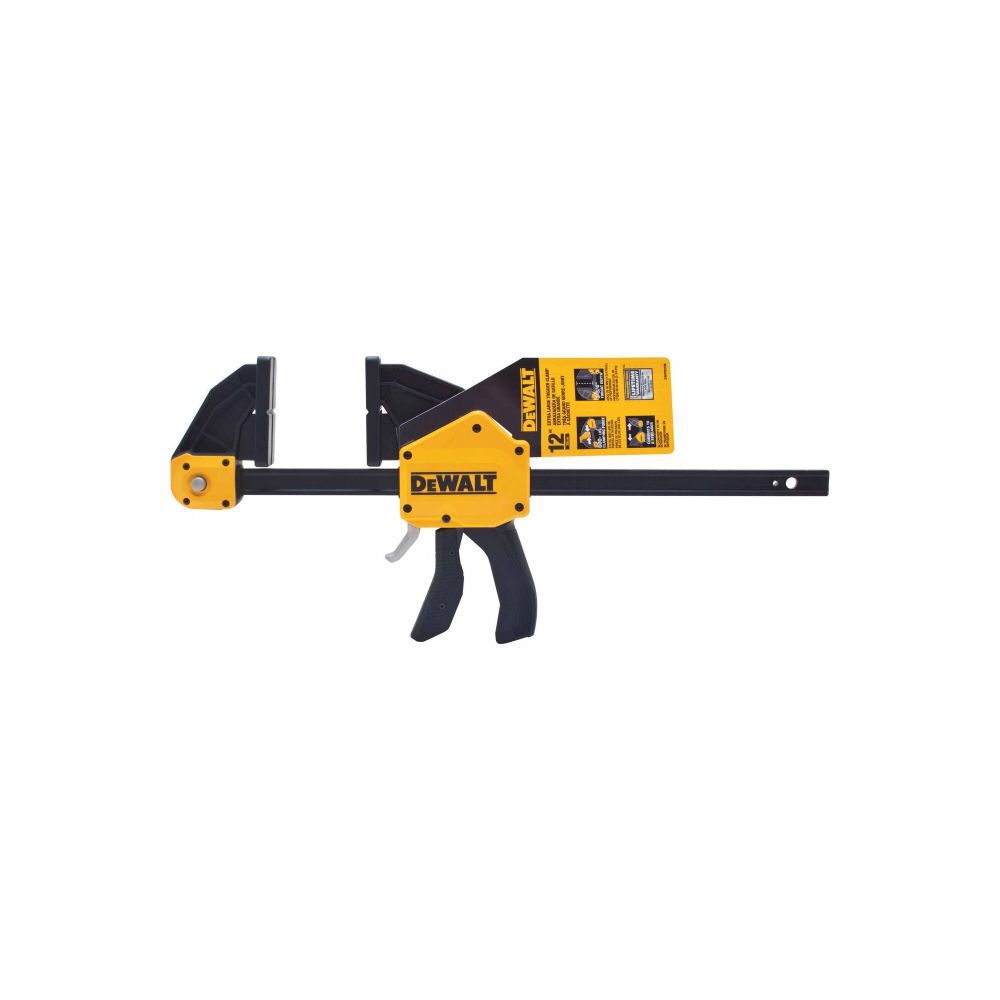

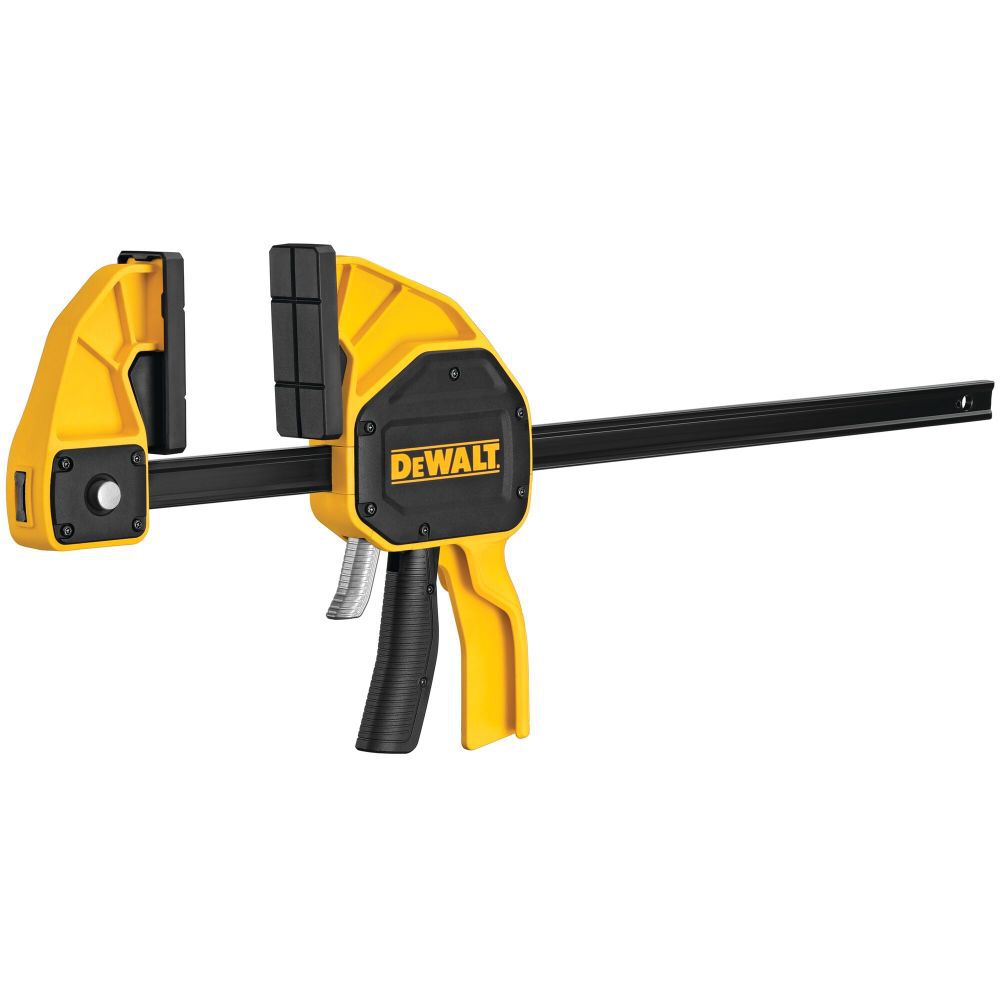

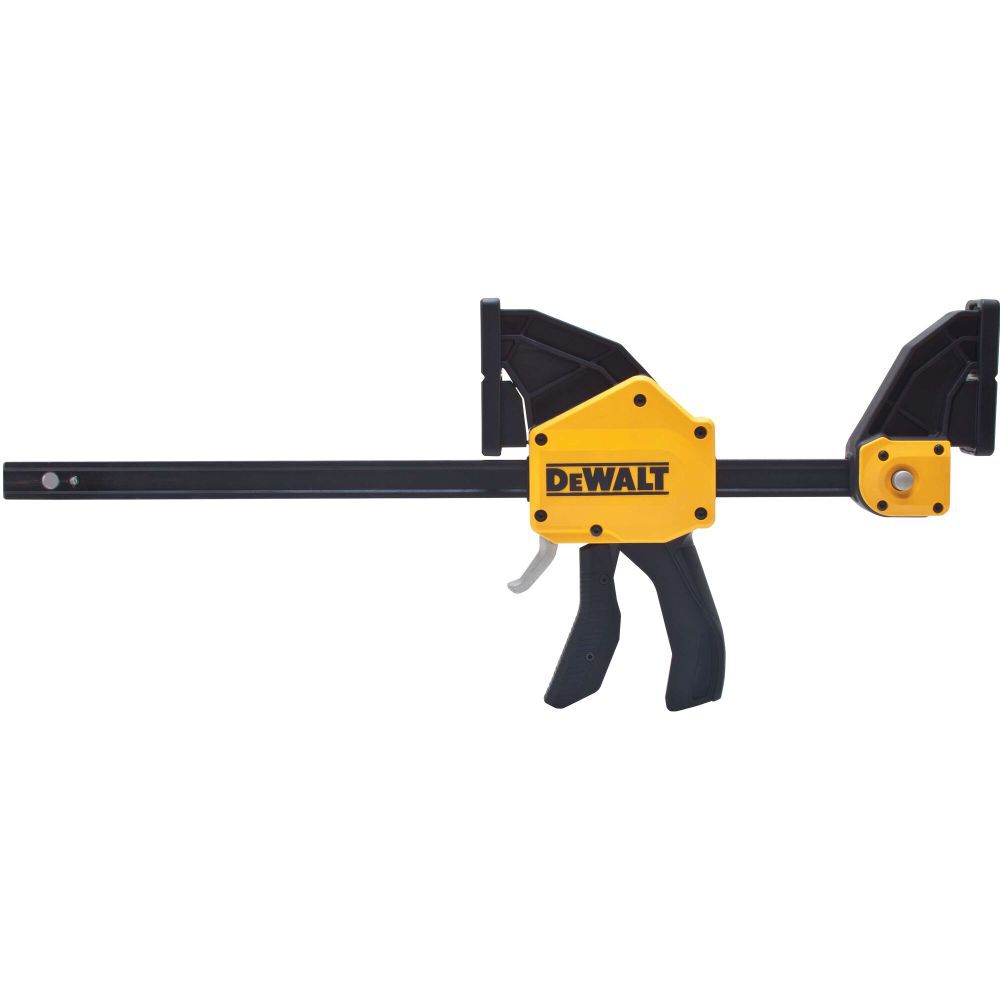

DeWalt DWHT83185 12" Extra Large Trigger Clamp

VM HardwareSKU: DWHT83185

Price:
Sale price$26.81 USD

Shipping calculated at checkout

Stock:
Only 2 units left

Store Pickup: List of available stores available on the Checkout page.

Description

DeWalt DWHT83185 12" Extra Large Trigger Clamp

The 12-inch extra large bar clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 600-pounds of clamping force, 3-3/4" throat depth, quick change button for easy conversion to a spreader and removable jaw pads to help reduce marring, this clamp was built to exceed the expectations of professional contractors.

Applications

  • General Contractors
  • Cabinet Makers
  • Cabinet Installers
  • Carpenters

    Specifications

    Average Clamping Force [Kg] 270
    Bar Length [mm] 300
    Bar Material Black Oxide Carbon Steel I-Beam
    Bar Thickness [mm] 7
    Body Material Plastic
    Clamping Capacity [mm] 325
    Clamping Force [Kg] 270
    Clamping Force [lbs] 600
    Clamps and Vices Product Type Trigger Clamp / One Handed Bar Clamp
    Handle Material Plastic
    Has Quick Release Mechanism? Yes
    Has Safety Stop? Yes
    Jaw Depth [mm] 90
    Jaw Pads Material Non-Marring
    Jaw Pad Type Fix
    Jaw Width [mm] 40
    Max. Clamping Force [Kg] 270
    Max. Jaw Opening [mm] 325
    Packaging Hang Tag
    Pad Dimensions l x w x h [in] 90mm x 40mm x10mm
    Product Dimensions with Packaging l x w x h [in] 530x280x40
    Product Dimensions w/o Packaging l x w x h [in] 530x280x40
    Product Height [mm] 40
    Product Length [mm] 530
    Product Weight [g] 1300
    Product Weight [Kg] 1.3
    Product Width [mm] 280
    Spreading Capacity [mm] 515
    Spreading Function Yes
    Sustained Clamping Force [Kg] 270
    Throat Depth [in] 3-3/4
    Throat Depth [mm] 95

    Additional Features

    • One-handed operation for ease of use
    • Quick change button allows for easy conversion to a spreader
    • Full face removable jaw pads help prevent marring

    Includes

    • Clamp

    Warranty Information

      • 1 Year Limited Warranty

      We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

      We will issue a refund in the original form of payment for merchandise that is unused & in original packaging within 14 days of purchase. Any defective merchandise can be exchanged within 30 days of purchase.

      Exclusions:

      • Special Order items include Software, GPS, Total Stations, Utility Locators, or Leica Geosystems products.

      • We do not accept returns for replacement parts for any reason other than an error on our part.

      • Once an order has shipped, it cannot be cancelled. You may refuse the order upon delivery, in which case the standard return policy for the item will apply, and we will deduct the return shipping costs from your refund credit.

      All merchandise returned after 14 days of purchase will have a 20% restocking fee & refund will only be available as store credit.

      The customer is responsible for return
      shipping of any returned products, some exclusions may apply.

      We do not accept returns or cancellations for special ordered items.

      Special Order items include GPS, Total Stations, Utility Locators, or Leica Geosystems products.

      • Every product comes with Benchmark's lifetime support. If your confused on something, we have experts on staff ready to help with post-sale support.
      • Certified Repair Center with quick turnaround on warranty repairs.
      • We ship from 6 different locations to ensure quick delivery
      • Pickup at any of our local stores
      • Available to answer questions or take orders by phone at 866-342-7665 (8am-5pm, M-F)
