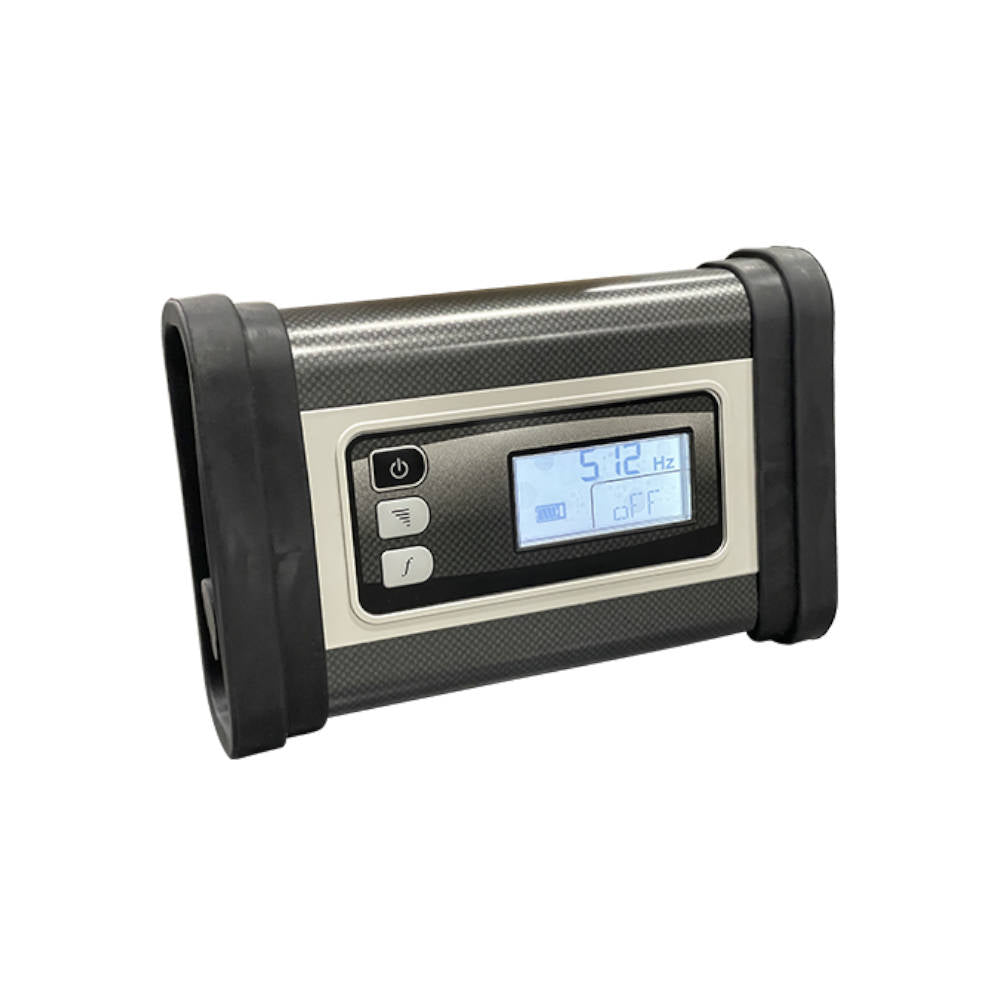

SubSurface PL-VF3R Pipe and Cable Locator Transmitter (Only)

Ahorrar $440.00
SubSurfaceSKU: PL-VF3R TX Only

Precio:
Precio de venta$2,200.00 USD Precio habitual$2,640.00 USD

Gastos de envío calculados en la caja

Stock:
Pronto en stock

Store Pickup: List of available stores available on the Checkout page.

Descripción

  • Available Operating Frequencies: 512 Hz to 200 kHz
  • Indicators: AC Load Assistance Measurement, Relative Ohms, Voltage, Live Voltage Output, Current Output, Power Level, Frequency, Mode, Battery Indication Alert, and Low Battery Indicator
  • Low Battery Warning: Audio/Visual Low Battery Indicator with Modulated Low Battery Warning Transmitted to Receiver
  • Load Matching: Automatic from 5 Ohms to 25,000 Ohms
  • Output Power: 3 Power Settings
  • Low and Medium Frequency Output Range: 0.2 W to 3 W
  • High-Frequency Output Range: 0.2 W to 1 W for Frequencies Above 44 kHz
  • Induction Mode: Not Available in This Model
  • Power Source: Rechargeable Lithium-Ion Battery, 84.24 Wh
  • Battery Life: 8 to 12 Hours Continuous, Depending on Load, Frequency, and Power Setting
  • Operating Temperature: -4°F to 133°F (-20°C to 55°C)
  • Ingress Protection Rating: IP65

The PL-VF3R 3 Watts Transmitter provides controlled signal output for tracing buried utilities with compatible PL-VF locating receivers. It supports operating frequencies from 512 Hz to 200 kHz, offers three power settings, and provides automatic load matching from 5 ohms to 25,000 ohms for reliable signal transmission across changing field conditions. Powered by a rechargeable 84.24 Wh lithium-ion battery, the transmitter delivers 8 to 12 hours of continuous runtime depending on load, frequency, and power setting. With IP65 protection, clear status indicators, and low-battery warnings transmitted to the receiver, the PL-VF3R is built for practical direct-connect utility locating work.

  • PL-VF3R Transmitter
