Schonstedt u-Locate+ Receiver | 10/ULOCATE+RX

Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar

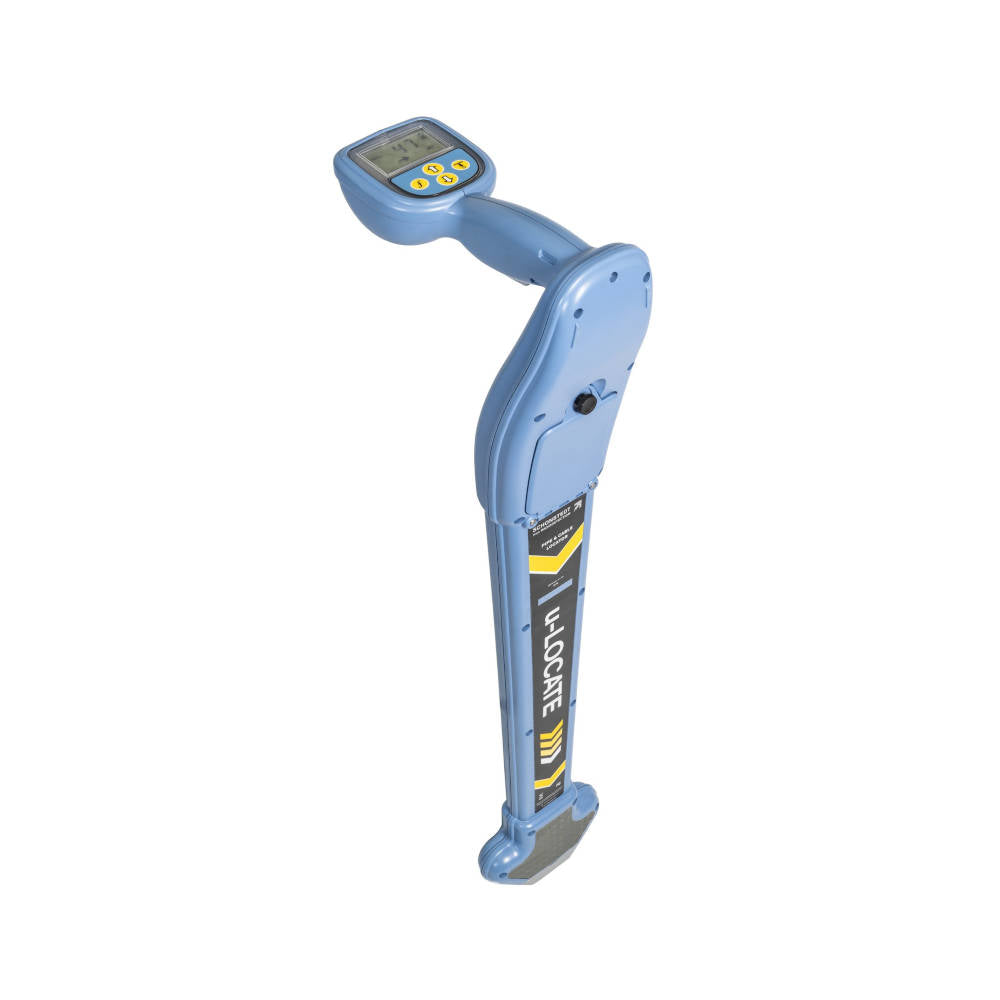

Schonstedt u-Locate+ Receiver | 10/ULOCATE+RX

Name: Schonstedt u-Locate+ Receiver | 10/ULOCATE+RX
Brand: Schonstedt
SKU: 10/ULOCATE+RX
Price: 1497.0 USD
Availability: InStock

Ahorrar $299.40

SchonstedtSKU: 10/ULOCATE+RX

Precio:

$1,497.00 USD $1,796.40 USD

Gastos de envío calculados en la caja

Stock:

Pronto en stock

Cantidad:

Store Pickup: List of available stores available on the Checkout page.

Comparte este producto

Specifications

Active Operating Frequencies: 33 kHz and 82 kHz
Passive Power Mode: 50/60 Hz
Sonde Frequency: 512 Hz
Maximum Active Detection Depth: 19 ft
Maximum Sonde Detection Depth: 15 ft, depending on sonde type
Positional Accuracy: 5%
Depth Estimation: Yes
Guidance: Left and right directional arrows with audio response
Display: High-contrast screen
Display Information: Battery level, gain level, frequency, operating mode, target direction, and audio volume
Audio Output: 10 to 1,500 Hz, determined by signal strength
Audio Level: 0 to 70 dB SPL, volume controlled
Headphone Socket: Yes
Battery Type: 6 AA batteries
Operating Time: Approximately 20 hours
Ingress Protection: Weatherproof to NEMA 3S and IP65
Construction: High-impact ABS plastic
Operating Temperature: 14°F to 122°F

Product Description

The Schonstedt u-LOCATE+ Receiver expands underground utility locating with 33 kHz and 82 kHz active frequencies, 50/60 Hz passive power detection, and a 512 Hz sonde mode. The wider frequency range allows operators to trace buried water, gas, electric, and telecommunications utilities, while sonde mode supports locating compatible sondes and inspection cameras inside non-metallic pipes, ducts, and conduits.

Left and right guidance arrows, adjustable audio output, and a high-contrast display help the operator follow the selected signal and pinpoint the utility path. The receiver provides active-line depth estimation up to 19 feet and sonde detection up to 15 feet, depending on sonde type. Its high-impact ABS housing is weatherproof to NEMA 3S and rated IP65.

Please note: Transmitter not included

Brochures and Manuals

u-Locate Pipe and Cable Locator User Manual
