Schonstedt REX Transmitter | REX-T

Name: Schonstedt REX Transmitter | REX-T
Brand: Schonstedt
SKU: REX-T
Price: 2341.0 USD
Availability: InStock

Ahorrar $468.20

SchonstedtSKU: REX-T

Precio:

$2,341.00 USD $2,809.20 USD

Gastos de envío calculados en la caja

Stock:

Pronto en stock

Cantidad:

Store Pickup: List of available stores available on the Checkout page.

Comparte este producto

Specifications

Operating Frequencies: 512 Hz, 33 kHz, and 82 kHz
Operating Modes: Conductive, inductive, and inductive clamp
Output Power at 512 Hz: 0.5, 1, 2, or 5 W
Output Power at 33 kHz: 0.5, 1, 2, or 5 W
Output Power at 82 kHz: 0.5 or 1 W
Output Rating Basis: Conductive mode at 1,000-ohm load
Battery Type: Rechargeable 12V NiMH battery pack
Battery Life: Approximately 8 hours of intermittent use
Charging: Internal smart charger powered by AC/DC adapter
Width: 10 inch
Depth: 10.25 inch
Height: 1.75 inch
Weight: 3.5 lb
Operating Temperature: -4°F to 140°F
Water and Dust Resistance: IP54 rated

Product Description

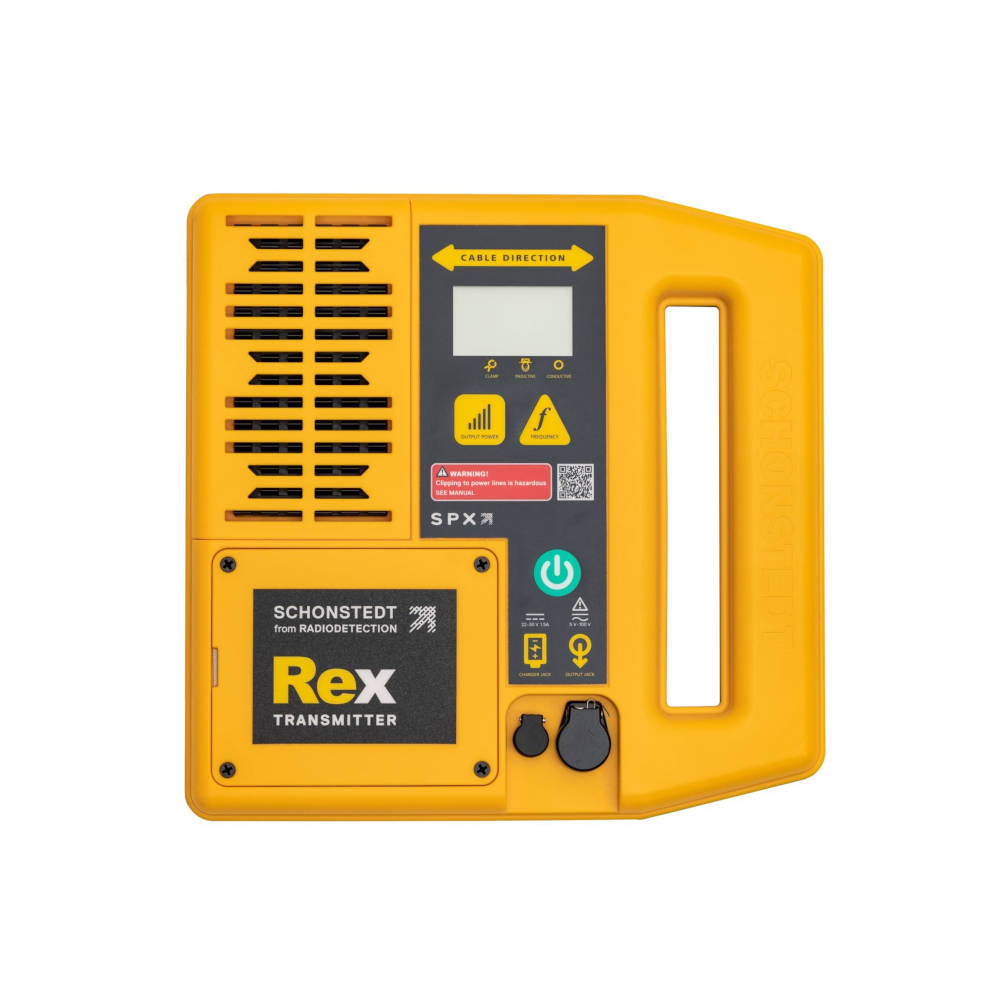

The Schonstedt Rex Transmitter is a compact multi-frequency signal source for tracing buried water, sewer, gas, electric, and telecommunications utilities. Its 512 Hz, 33 kHz, and 82 kHz operating frequencies support conductive connection, inductive coupling, and inductive clamp applications. This flexibility helps operators apply an appropriate signal based on the utility type, access point, and required locating distance.

The transmitter delivers up to 5 W at 512 Hz and 33 kHz and up to 1 W at 82 kHz. Its low-profile housing measures 10 inches wide by 10.25 inches deep by 1.75 inches high and weighs 3.5 pounds. The rechargeable NiMH battery provides approximately eight hours of intermittent use, while the built-in smart charging system simplifies recharging. An IP54 rating helps protect the transmitter from dust and water during field use.

Please note: Receiver Sold Separately

In the Box

(1)x REX Transmitter: 1 – Rechargeable NiMH pack (12V) (in unit)

Brochures and Manuals

REX Multi-Frequency Pipe and Cable Locator User Manual
