Schonstedt RD510 Complete Kit w/4 and 10 bar Pulsed Water Valve | 10/RD510-KIT-PRO

RD510 Water Pipe Locator and Leak Detector

• Operating Modes: Spectrum Analysis and Locating
• Maximum Pipe Tracing Distance: Up to 148 ft
• Maximum Leak Detection Depth: Up to approximately 16 ft
• Display: 7-inch HD color touchscreen
• Frequency Range: 1 to 1,000 Hz
• Gain: 10 adjustable levels
• Volume: 10 adjustable levels
• Response: Peak
• Acoustic Sensor Type: Piezoelectric ceramic
• Power: Internal non-removable Li-ion battery
• Power Input: 5 V, 2 A Micro USB
• Operating Time: Up to 8 hours
• Operating Temperature: -4°F to 122°F
• Construction: ABS
• Case Dimensions: 8.9 x 23.6 x 17.7 inch

Pulsed Water Transmitter

• Pressure Configuration: Standard and High pressure
• Pulsed Water Valve: 4 and 10 bar
• Power: 8 D-cell alkaline batteries, 12 V DC input, or optional Li-ion battery pack
• Operating Time: Up to 8 hours
• Ingress Protection: IP65 with tool tray installed
• Construction: ABS
• Operating Temperature: -4°F to 122°F
• Case Dimensions: 8 x 13.5 x 9 inch

The RD510 Full Kit provides acoustic pipe tracing and leak detection for a wider range of water systems by including both 4 bar and 10 bar Pulsed Water Valves. The transmitter introduces a traceable sound into plastic or other non-metallic water pipes, while the handheld control unit and ground acoustic sensor detect that signal from above ground. Operators can trace buried pipe routes over distances up to 148 feet and investigate leaks at depths up to approximately 16 feet, depending on site conditions.

The two-valve configuration allows crews to adapt the system to standard- and high-pressure applications without purchasing separate kits. A 7-inch color touchscreen, spectrum analysis mode, ten gain levels, ten volume levels, noise filtering, headset, telescopic pole, ground plate, and soft-ground spikes support pipe locating and leak investigation across hard and soft surfaces.

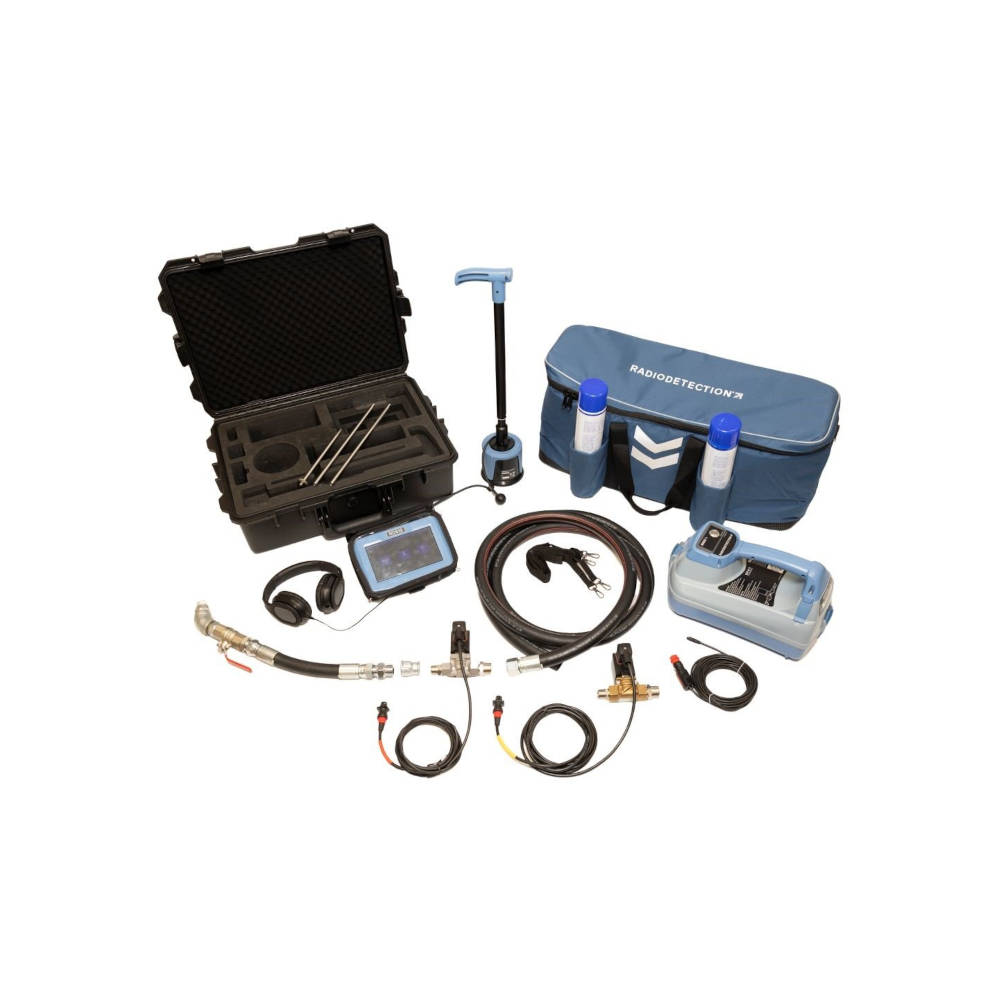

• RD510 Water Pipe Locator & Water Leak Detector Kit: Hand held control unit with soft bag cover, acoustic sensor, telescopic pole, soft ground spikes, hard ground plate, headset, USB cable, memory card, transit case
• RD510 Pulsed Water Transmitter: Pulsed water transmitter, soft bag, 12V car adaptor, pipe connection kit, Pulsed Water Valve (4 and 10 bar)
