Schonstedt RD510 High Pressure Kit w/10 bar Pulsed Water Valve | 10/RD510-KIT-HP

Ahorrar $1,760.20
SchonstedtSKU: 10/RD510-KIT-HP

Precio:
Precio de venta$8,801.00 USD Precio habitual$10,561.20 USD

Gastos de envío calculados en la caja

Stock:
Pronto en stock

Store Pickup: List of available stores available on the Checkout page.

Descripción

RD510 Water Pipe Locator and Leak Detector

  • Operating Modes: Spectrum Analysis and Locating
  • Maximum Pipe Tracing Distance: Up to 148 ft
  • Maximum Leak Detection Depth: Up to approximately 16 ft
  • Display: 7-inch HD color touchscreen
  • Frequency Range: 1 to 1,000 Hz
  • Gain: 10 adjustable levels
  • Volume: 10 adjustable levels
  • Response: Peak
  • Acoustic Sensor Type: Piezoelectric ceramic
  • Power: Internal non-removable Li-ion battery
  • Power Input: 5 V, 2 A Micro USB
  • Operating Time: Up to 8 hours
  • Operating Temperature: -4°F to 122°F
  • Construction: ABS
  • Case Dimensions: 8.9 x 23.6 x 17.7 inch

Pulsed Water Transmitter

  • Pressure Configuration: High pressure
  • Pulsed Water Valve: 10 bar
  • Power: 8 D-cell alkaline batteries, 12 V DC input, or optional Li-ion battery pack
  • Operating Time: Up to 8 hours
  • Ingress Protection: IP65 with tool tray installed
  • Construction: ABS
  • Operating Temperature: -4°F to 122°F
  • Case Dimensions: 8 x 13.5 x 9 inch

The RD510 High Pressure Kit provides water utility and maintenance crews with a method for tracing plastic pipes and locating leaks without relying on metallic conductors. The 10 bar Pulsed Water Valve connects the transmitter to the target water system and generates a repeating acoustic signal. The RD510 sensor detects that pulse from above ground, allowing the operator to follow the buried pipe and compare sound levels when narrowing down a leak location.

The system combines a high-sensitivity piezoelectric ground microphone with a touchscreen control unit that displays the detected sound response. Adjustable filtering, gain, and volume help separate the target signal from traffic, machinery, and other environmental noise. Detection performance varies with pipe type, operating pressure, ground composition, and site conditions.

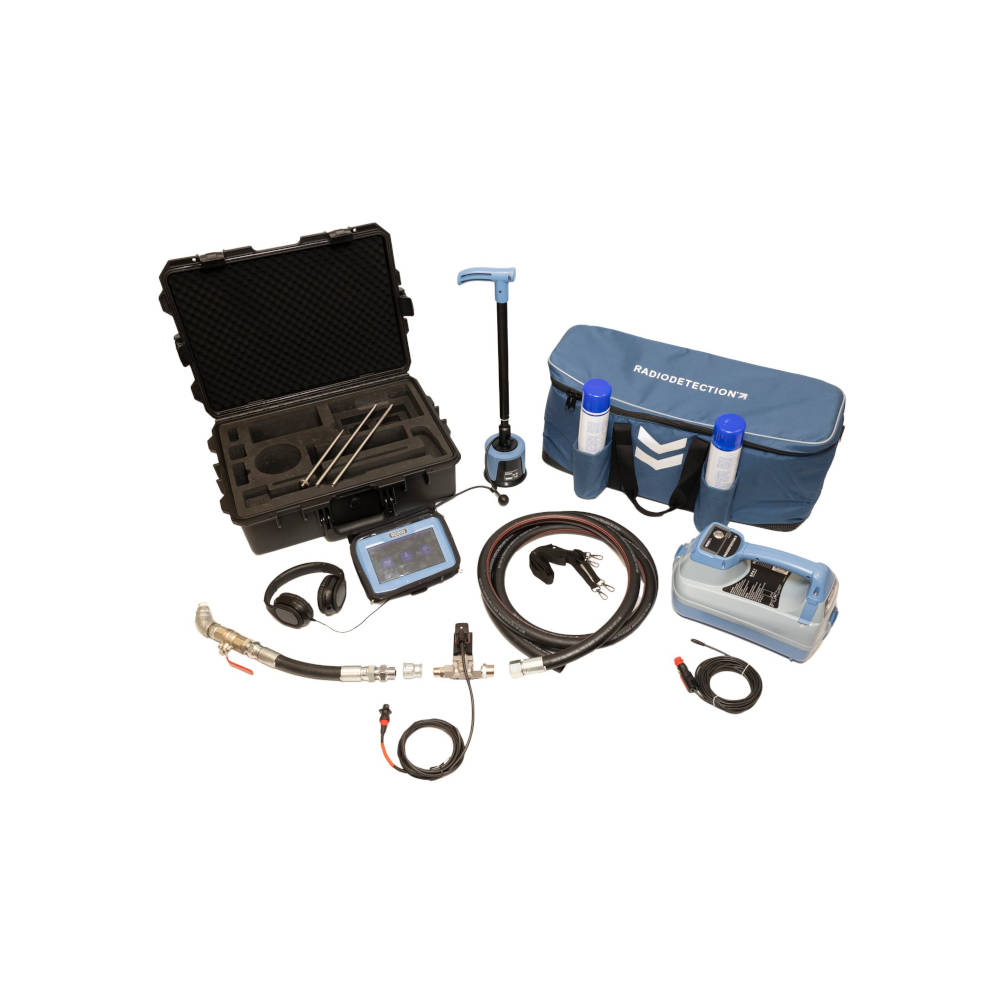

  • RD510 Water Pipe Locator & Water Leak Detector Kit: Hand held control unit with soft bag cover, acoustic sensor, telescopic pole, soft ground spikes, hard ground plate, headset, USB cable, memory card, transit case
  • RD510 Pulsed Water Transmitter: Pulsed water transmitter, soft bag, 12V car adaptor, pipe connection kit, Pulsed Water Valve (10 bar)
