Johnson Level SE-20 Solar Tracking Green Alignment Laser System | 40-6267

Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar

Johnson Level SE-20 Solar Tracking Green Alignment Laser System | 40-6267

Name: Johnson Level SE-20 Solar Tracking Green Alignment Laser System | 40-6267
Brand: Johnson Level
SKU: 40-6267
Price: 8267.44 USD
Availability: InStock

Ahorrar $731.56

Johnson LevelSKU: 40-6267

Precio:

$8,267.44 USD $8,999.00 USD

Gastos de envío calculados en la caja

Stock:

Pronto en stock

Cantidad:

Store Pickup: List of available stores available on the Checkout page.

Comparte este producto

Specifications

Laser Beam: Green
Laser Wavelength: 520 nm ±10 nm
Laser Classification: Class IIIa
Maximum Power Output: <5 mW
Accuracy: ±1/8 inch at 100 ft. concentric beam alignment to case O.D.
Working Range: 1,000 ft.+
Power Supply: 12V RoHS compliant SLA battery
Battery Type: Sealed lead acid backup battery
Battery Life: 1 week
Power Feature: Solar powered with attached solar cell
Working Temperature: 14°F to 122°F
IP Protection Class: IP67
Beam Visibility: Dual green laser beams for direct sunlight visibility
Alignment Control: Grade and slope leveling adapter with vertical micrometer
Vertical Micrometer Accuracy: +1/8 inch at 100 ft.
Beam Deviation: Less than 1/4 inch over 100 ft. when pile mounted
Housing: Solid brass waterproof laser case
Applications: Solar pile, pylon, bracketry, rail, torsion bar, bearing, and slew motor alignment

Product Description

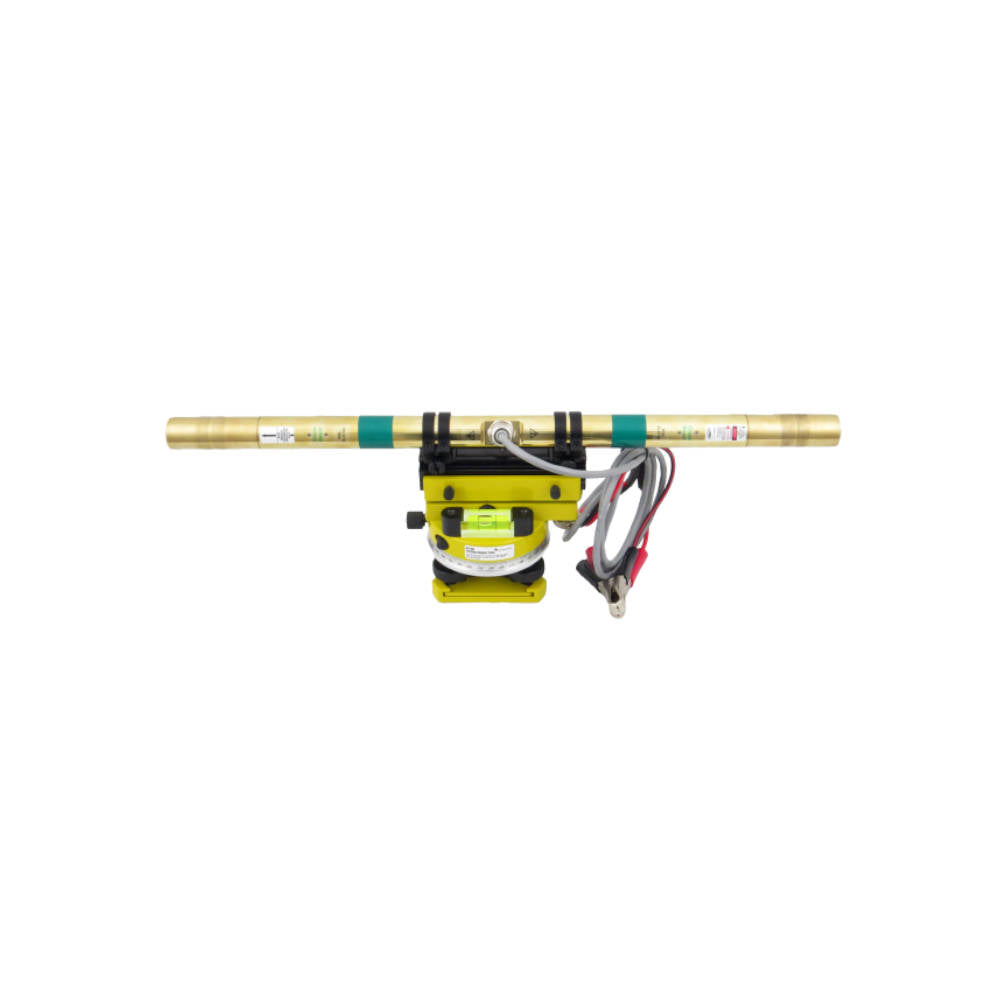

The SE-20 Solar Tracking Green Alignment Laser System is designed for precise alignment during solar field installation. It helps crews establish a clear reference line for positioning pylons, piles, bracketry, rails, torsion bars, bearings, and slew motors before final placement. Dual green laser beams provide strong visibility in direct sunlight, making the system well suited for outdoor solar tracking and renewable energy installation work.

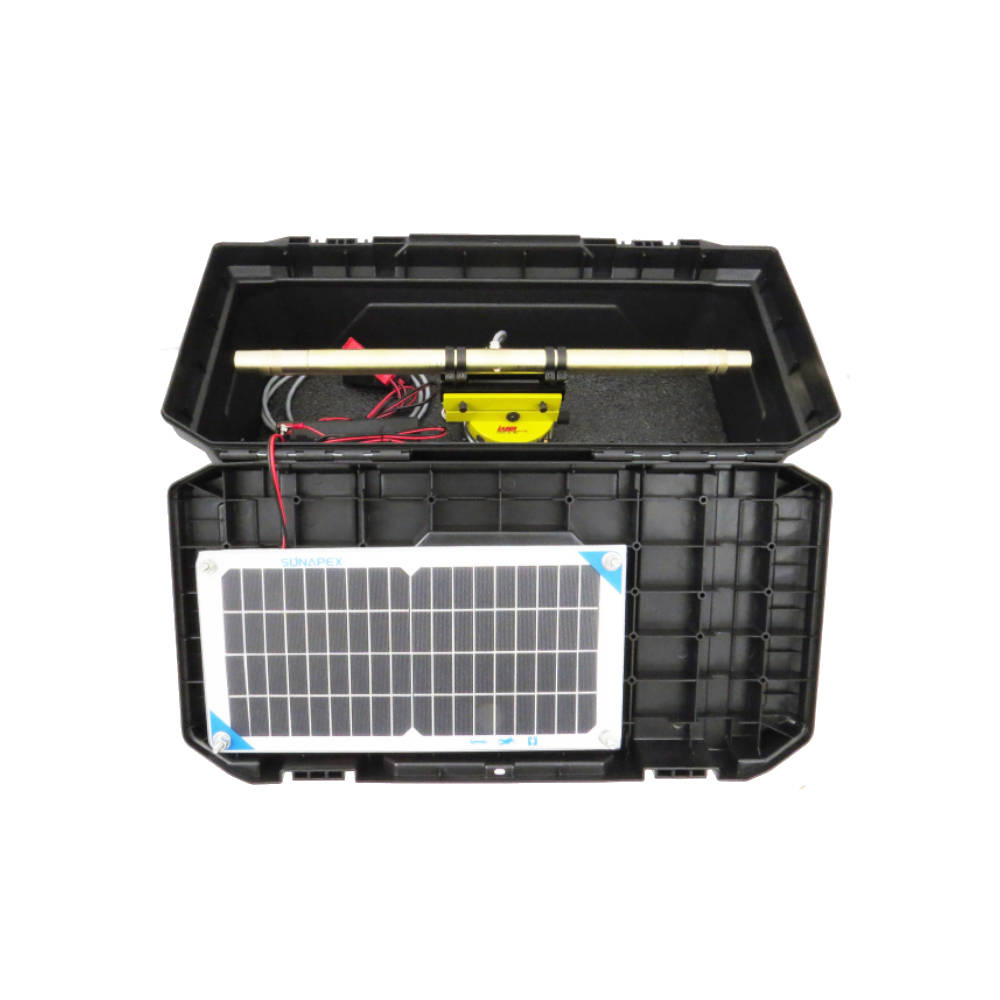

The system includes a grade and slope leveling adapter with a vertical micrometer for controlled alignment adjustments. Its solar-powered design reduces the need for replaceable batteries, while the included 12V SLA backup battery supports operation on cloudy days. A solid brass waterproof laser case, IP67 protection rating, and 1,000 ft. working range make the SE-20 a durable alignment solution for demanding solar installation environments.
