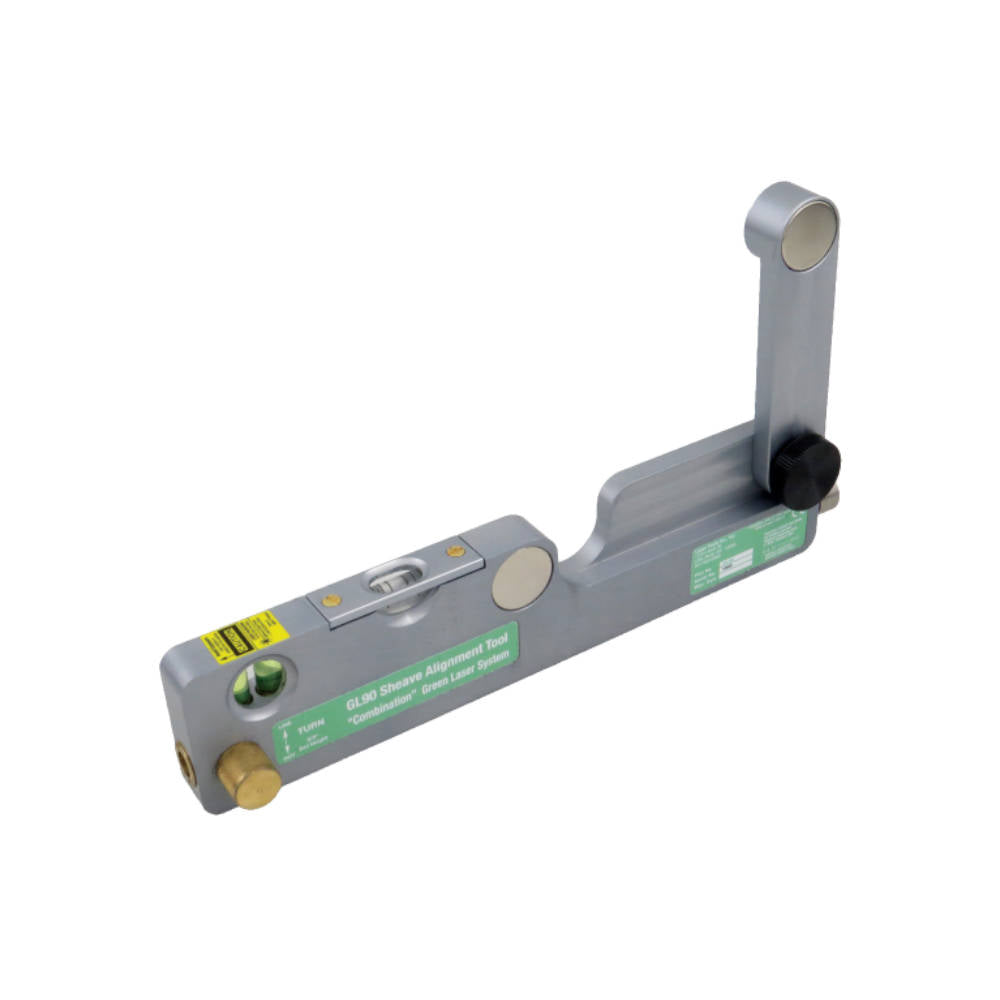

Johnson Level GLX90 Combination Laser System Green Beam Sheave or Dot | 40-6274

Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar

Johnson Level GLX90 Combination Laser System Green Beam Sheave or Dot | 40-6274

Name: Johnson Level GLX90 Combination Laser System Green Beam Sheave or Dot | 40-6274
Brand: Johnson Level
SKU: 40-6274
Price: 3279.94 USD
Availability: InStock

Ahorrar $119.06

Johnson LevelSKU: 40-6274

Precio:

$3,279.94 USD $3,399.00 USD

Gastos de envío calculados en la caja

Stock:

Pronto en stock

Cantidad:

Store Pickup: List of available stores available on the Checkout page.

Comparte este producto

Specifications

Laser Beam: Green
Laser Wavelength: 520 nm ±10 nm
Laser Classification: Class IIIa
Maximum Power Output: <5 mW
Accuracy: Line 60° angle accuracy +0.5°, Dot +1/8 inch at 100 ft.
Working Range: Up to 100 ft.
Power Supply: 3 AAA alkaline batteries included
Battery Life: 5 hours
Working Temperature: 14°F to 122°F
Level Vial: 5 arc minute
Plumb Vials: 40 arc minute
IP Protection Class: IP65
Mounting: Attaches to inside or outside of drive sheave
Mode Selection: Turret rotation switches from line to dot
Target Type: Adjustable magnetic targets for varying sheave thicknesses
Application: Sheave alignment, belt transmission alignment, and layout measurement
Housing: Rugged hard-anodized case
Switch Type: Stainless steel battery end cap switch
Tension Tester Range: 20 to 300 lb.

Product Description

The GLX90 Combination Laser System provides a green beam alignment solution for sheave alignment, belt transmission setup, and layout measurement. It works with both small and large drive sheaves and can be mounted on the inside or outside of the sheave for added setup flexibility.

This system switches between laser line and dot modes, giving users one tool for multiple alignment tasks. Accurate level and plumb vials support layout work, while adjustable magnetic targets accommodate different sheave thicknesses. Built for industrial use, the GLX90 features a rugged hard-anodized housing, IP65 protection, and battery-powered operation for portable use in the field.

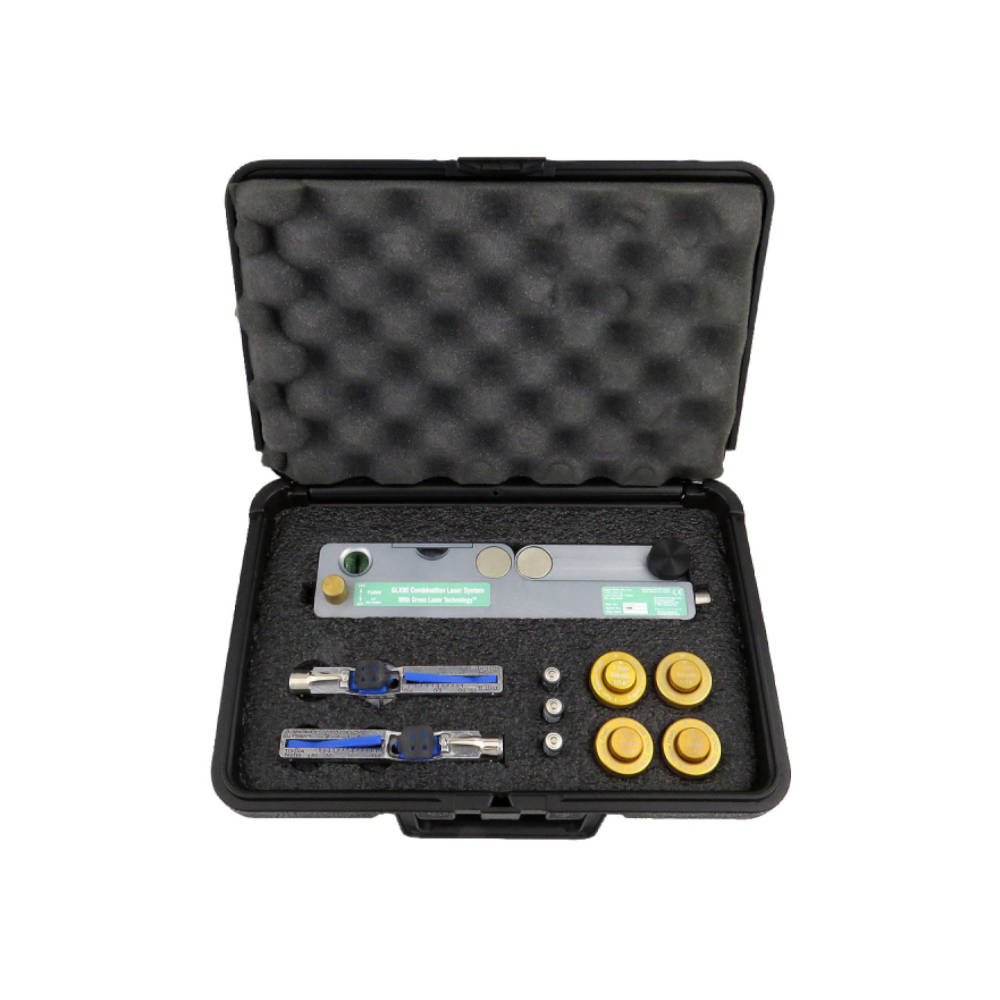

In the Box

Laser
(4)x Magnetic Targets
(2)x Krikit® Tension Testers
(3)x "AAA" Alkaline Batteries
Magnetic Carrying Case
