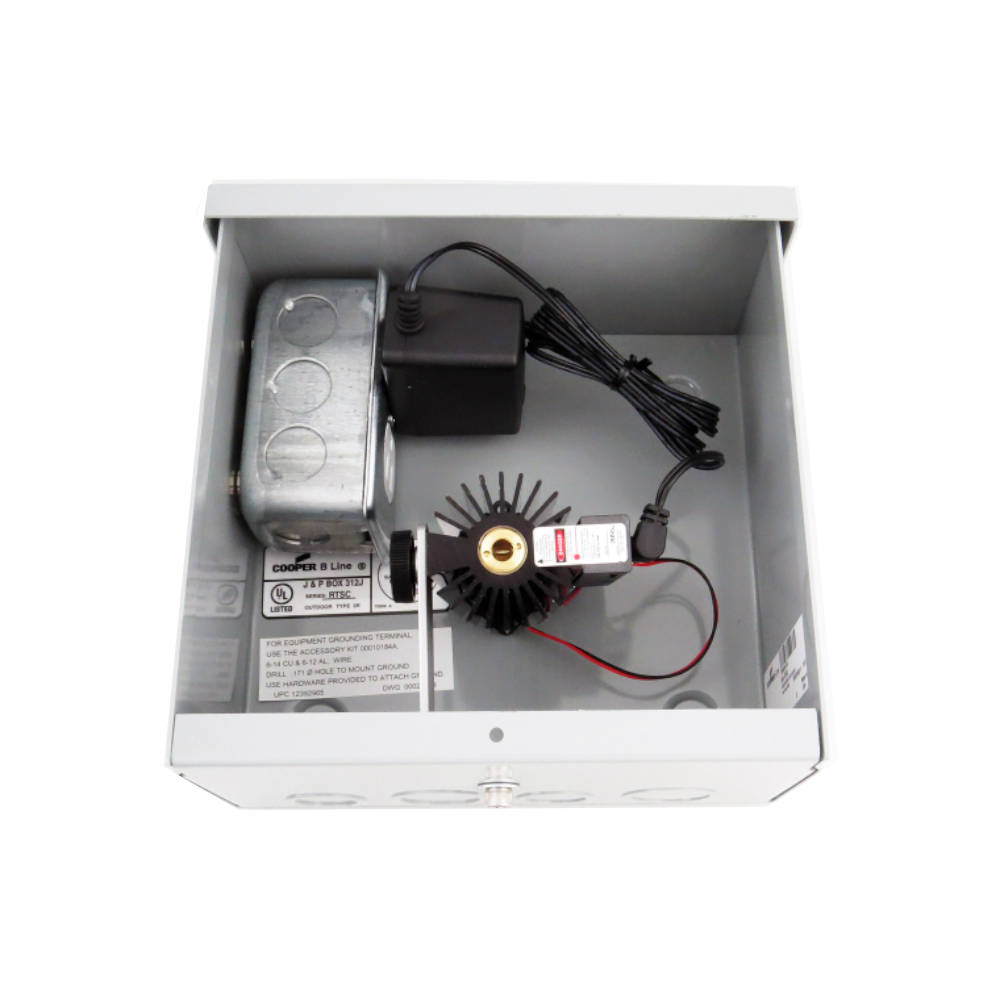

Johnson Level GLX60AC LD Green Laser Docking System | 40-6269

Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar

Johnson Level GLX60AC LD Green Laser Docking System | 40-6269

Name: Johnson Level GLX60AC LD Green Laser Docking System | 40-6269
Brand: Johnson Level
SKU: 40-6269
Price: 1573.69 USD
Availability: InStock

Ahorrar $25.31

Johnson LevelSKU: 40-6269

Precio:

$1,573.69 USD $1,599.00 USD

Gastos de envío calculados en la caja

Stock:

Pronto en stock

Cantidad:

Store Pickup: List of available stores available on the Checkout page.

Comparte este producto

Specifications

Laser Beam: Green
Laser Wavelength: 520 nm ±10 nm
Laser Classification: Class IIIa
Maximum Power Output: <5 mW
Power Supply: 110V AC
Accuracy: 60° angle accuracy ±0.5°
Working Range: Up to 500 ft.
Driver Visibility: Visible to truck drivers from over 150 ft. away when backing down
Working Temperature: 14°F to 122°F
IP Protection Class: IP65
Laser Emitters: 2 green laser emitters, one for each side of the dock
Guide Line Type: Parallel laser guide lines for trailer centering
Housing: Steel enclosures for environmental protection
Applications: Freight docks, freight terminals, delivery ramps, covered terminals, and tight docking areas

Product Description

The GLX60AC Green Laser Docking System is designed to help drivers center trailers safely and accurately at freight docks, terminals, and delivery ramps. Powered by 110V AC, the system uses two green laser emitters, one for each side of the dock, to project parallel guide lines that define the backing path for trailer alignment.

The green guide beams are visible in most jobsite and dock conditions, including mud, rain, snow, low light, overcast weather, and evening operations. Drivers can use the reflected laser lines in their wing mirrors while backing down ramps or tarmac areas, making the system useful for tight quarters, covered terminals, and hard-to-manage docking areas. Steel enclosures provide environmental protection, while bright side emission lights improve dock bumper visibility.

In the Box

Steel Enclosure
Mounting Bracket
110V AC Adapter
110V AC plug in Receptacle
90° Line Generator
