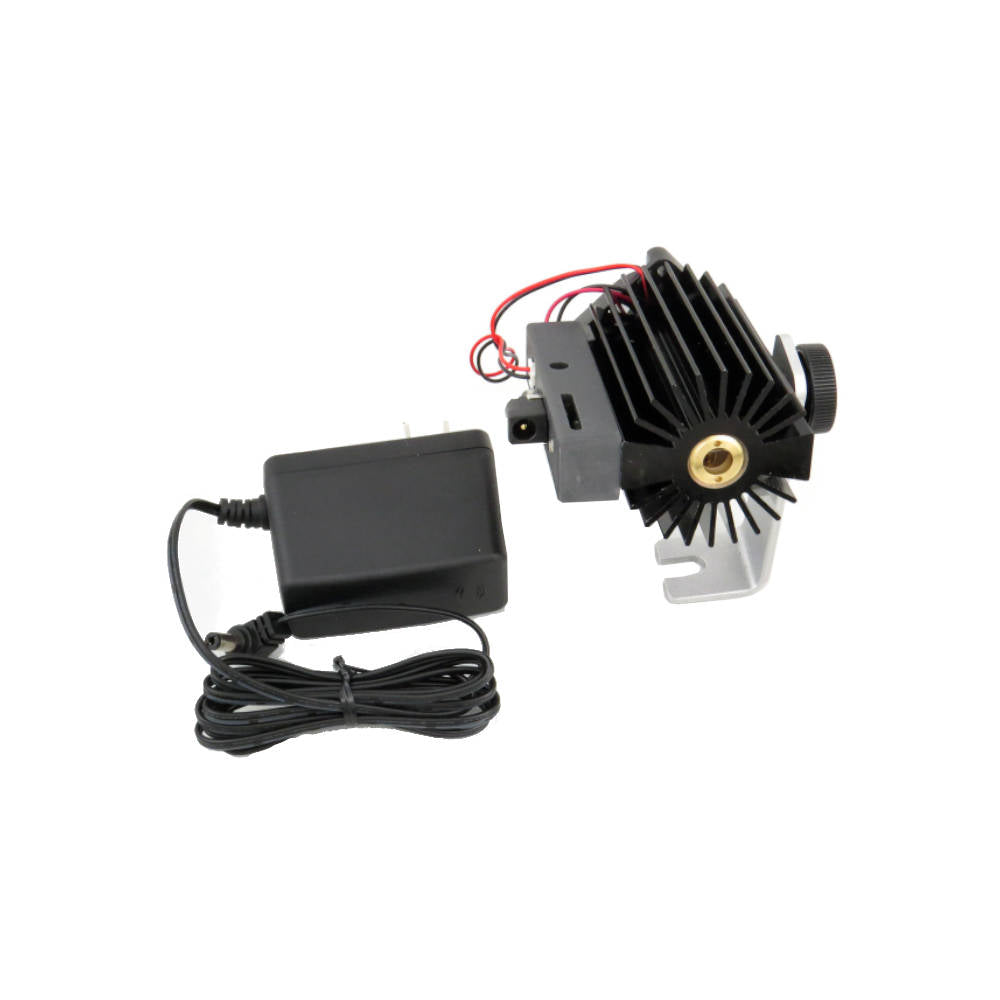

Johnson Level GLX60AC High Brightness Green Laser Module | 40-6272

Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar

Johnson Level GLX60AC High Brightness Green Laser Module | 40-6272

Name: Johnson Level GLX60AC High Brightness Green Laser Module | 40-6272
Brand: Johnson Level
SKU: 40-6272
Price: 3411.19 USD
Availability: InStock

Ahorrar $87.81

Johnson LevelSKU: 40-6272

Precio:

$3,411.19 USD $3,499.00 USD

Gastos de envío calculados en la caja

Stock:

Pronto en stock

Cantidad:

Store Pickup: List of available stores available on the Checkout page.

Comparte este producto

Specifications

Laser Beam: Green
Laser Wavelength: 520 nm ±10 nm
Laser Classification: Class IIIa
Maximum Power Output: <5 mW
Power Supply: 110V AC
Power Consumption: 6W
Accuracy: 60° angle accuracy ±0.5°
Working Range: Up to 500 ft.
Line Projection: Draws 100 ft. lines
Working Temperature: 14°F to 122°F
IP Protection Class: IP65
Cooling: External fan for high ambient temperature operation
Mounting: Mounting bracket included for fast installation and heat sink operation
Operation Indicator: Beam-on indicator for remote operation verification
Applications: Conveyor alignment, warehouse pathways, floor striping, layout, decks, and industrial visual guidance

Product Description

The GLX60AC High Brightness Green Laser Module is designed for industrial layout, alignment, pathway marking, and floor guidance applications. It projects a bright green laser line up to 100 ft., making it useful for conveyor alignment, warehouse pathways, floor striping, decks, and other areas where paint or tape may wear out or require frequent replacement.

Built for continuous use in demanding environments, the module operates on 110V AC power at 6W and includes an external cooling fan for high ambient temperature operation. The included mounting bracket allows fast installation and also supports heat sink operation. A beam-on indicator provides quick confirmation during remote operation, while the IP65-rated housing supports use in indoor industrial spaces and outdoor low-light, rain, snow, and overcast conditions.

In the Box

Mounting Bracket
110V AC Adapter
1/4"-20 Mounting Hardware
90° Line Generator
