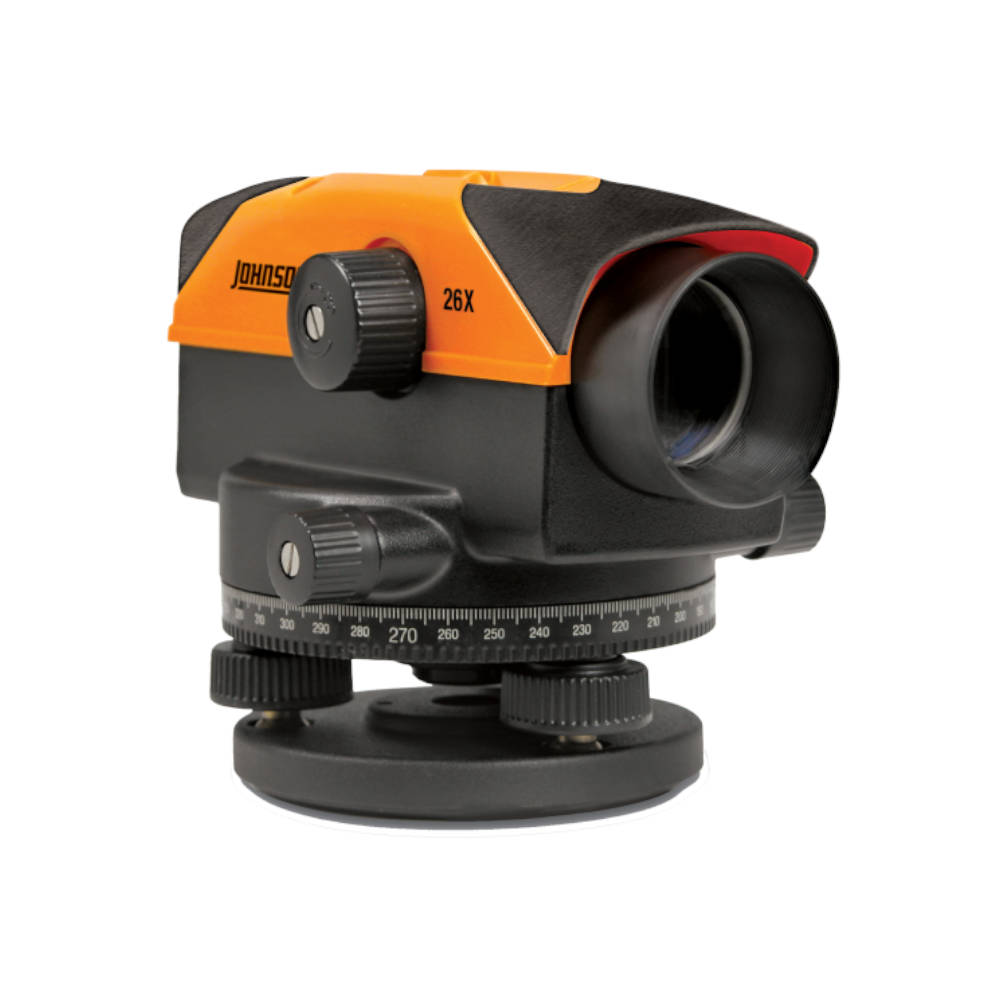

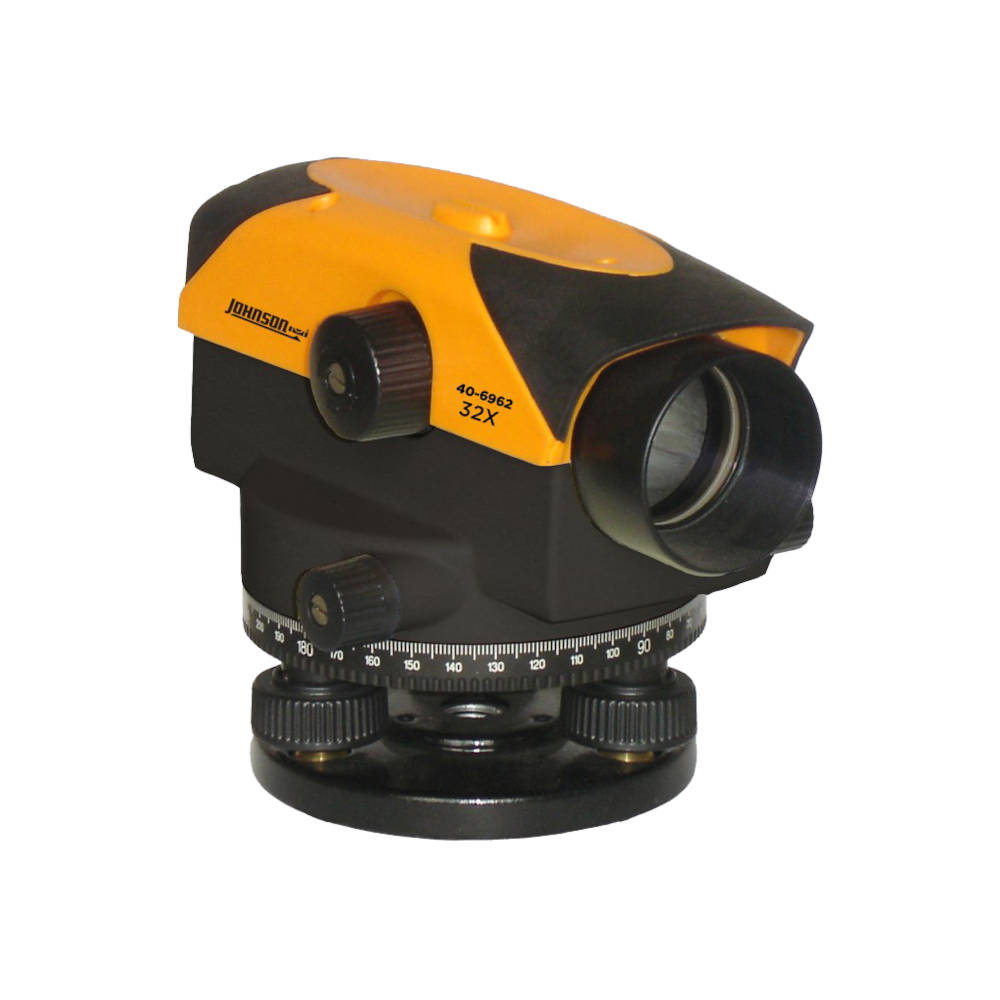

Johnson Level Automatic Optical Level

Name: Johnson Level Automatic Optical Level
Brand: Johnson Level
SKU: 40-6926
Price: 266.96 USD
Availability: InStock

Ahorrar $160.17

Johnson LevelSKU: 40-6926

Choose Magnification: 26x

Variante

Precio:

$266.96 USD $427.13 USD

Gastos de envío calculados en la caja

Stock:

Pronto en stock

Cantidad:

Store Pickup: List of available stores available on the Checkout page.

Comparte este producto

Specifications

Magnification: 26x, 30x, 32x
Leveling Accuracy: ±1/16 inch at 200 ft.
Working Range: Up to 350 ft.
Clear Objective Aperture: 40 mm
Field of View: 1° 30'
Stadia Constant: 100
Compensation Range: ±15'
Graduations: 1°
Tripod Thread: 5/8 inch-11
IP Protection Class: IP54
Compensator: Wire-hung, magnetically dampened compensator
Horizontal Circle: 360° horizontal circle
Adjustment: Fine adjustment knobs on left and right sides with endless horizontal drive
Focusing: Large focusing knob and focusable cross-hairs
Bubble Viewing: Prism for bubble viewing
Sighting Feature: Top-mounted optical sight for quick reference
Stadia Feature: 1:100 stadia for distance estimation
Protection: Water and dust resistant
Applications: Jobsite prep, grading, excavation, landscaping, foundations, footers, concrete formwork, and construction layout

Product Description

The Johnson Level Automatic Level is built for outdoor elevation, grading, excavation, foundation, landscaping, and concrete layout work. Its 26x/30x/32x magnification and 40 mm clear objective aperture provide a clear view of the grade rod, while the top-mounted optical sight helps users quickly locate the target.

The wire-hung, magnetically dampened compensator supports stable readings, and the level offers ±1/16 inch accuracy at 200 ft. Fine adjustment knobs on both sides, focusable cross-hairs, a 360° horizontal circle, and 1:100 stadia support accurate layout and distance estimation. The IP54-rated housing resists dust and water, making it suitable for most outdoor jobsite conditions.

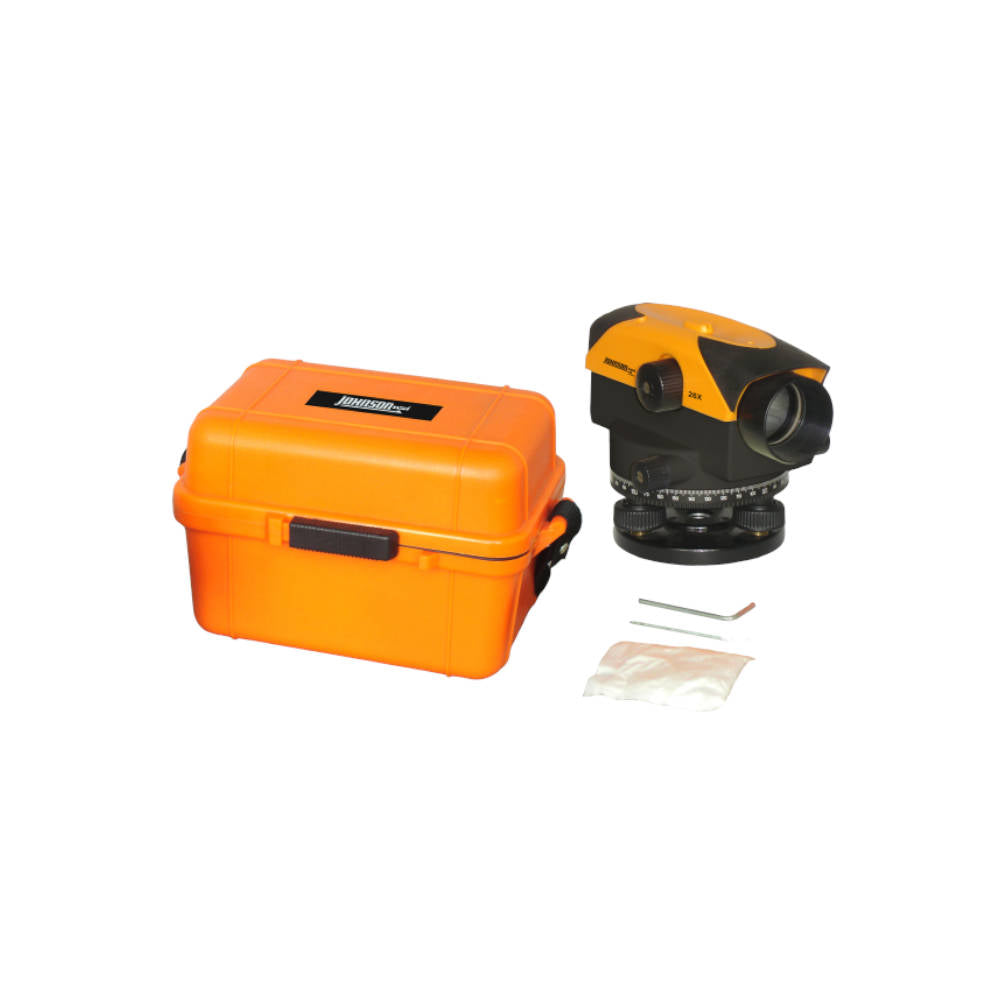

In the Box

Automatic Level
Hard-shell Carrying Case

Brochures and Manuals

Johnson Level Auto Level User Manual
