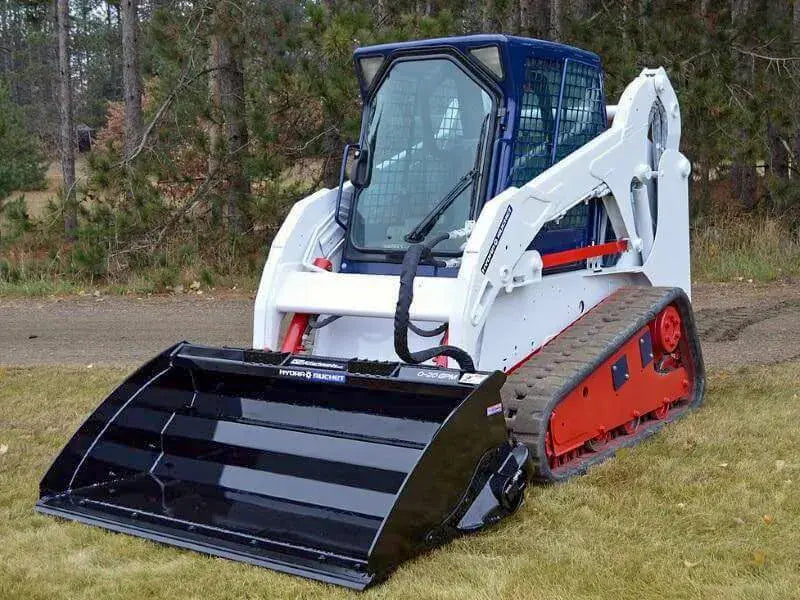

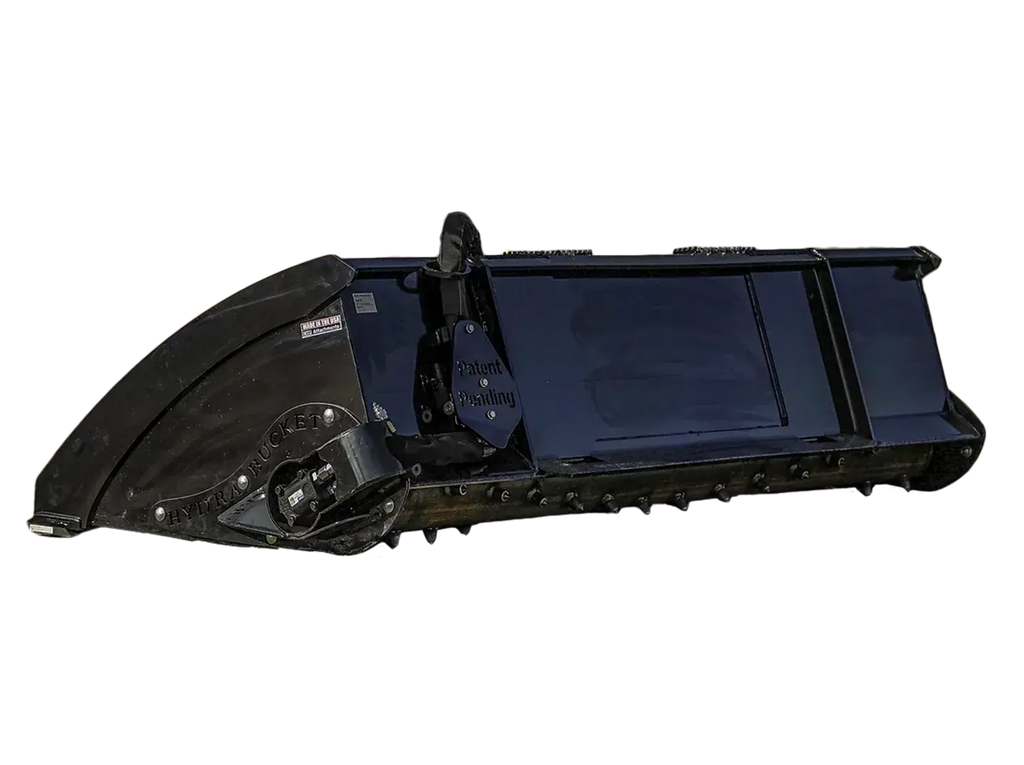

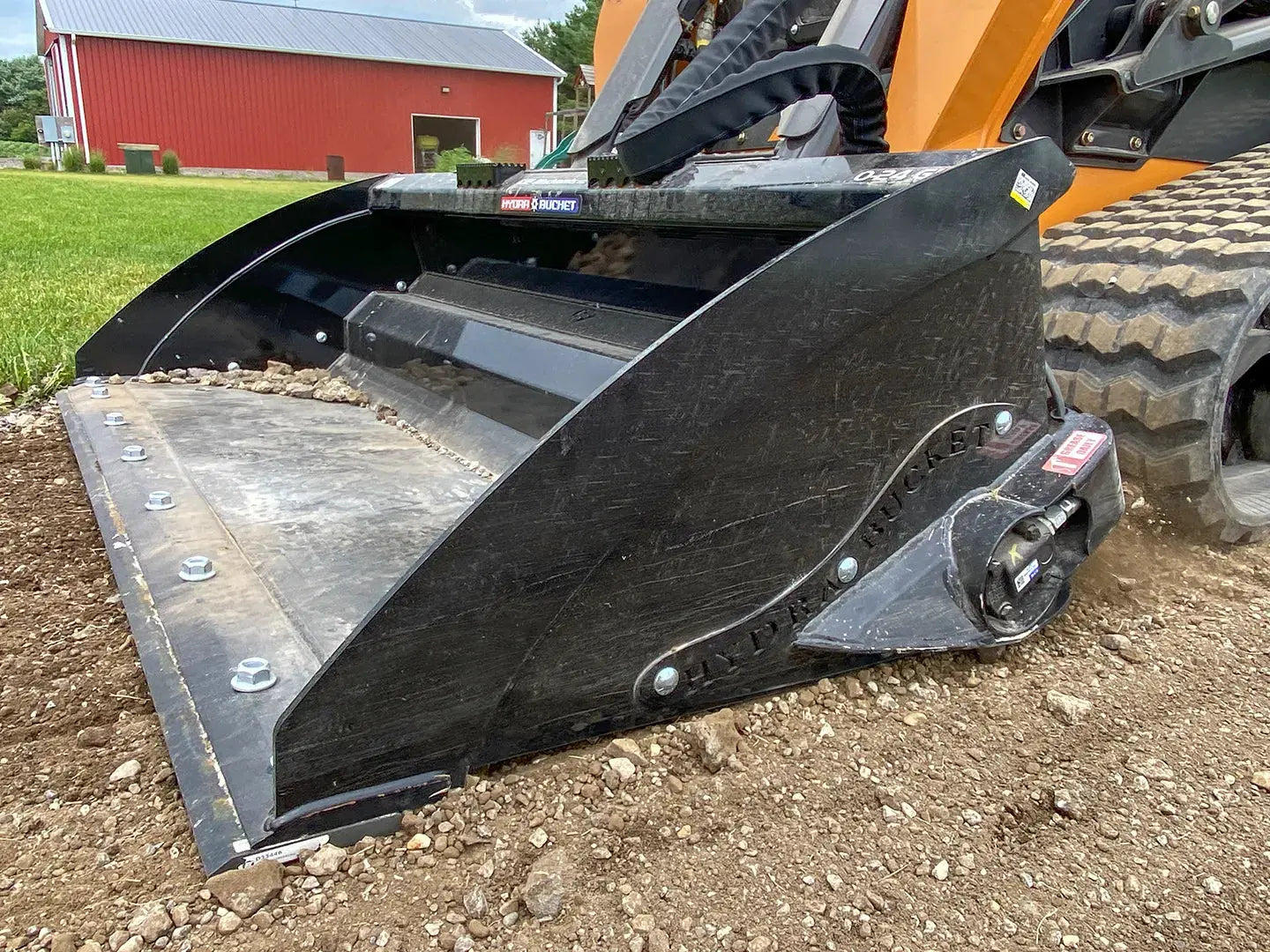

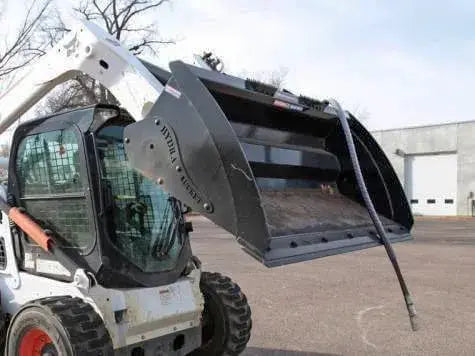

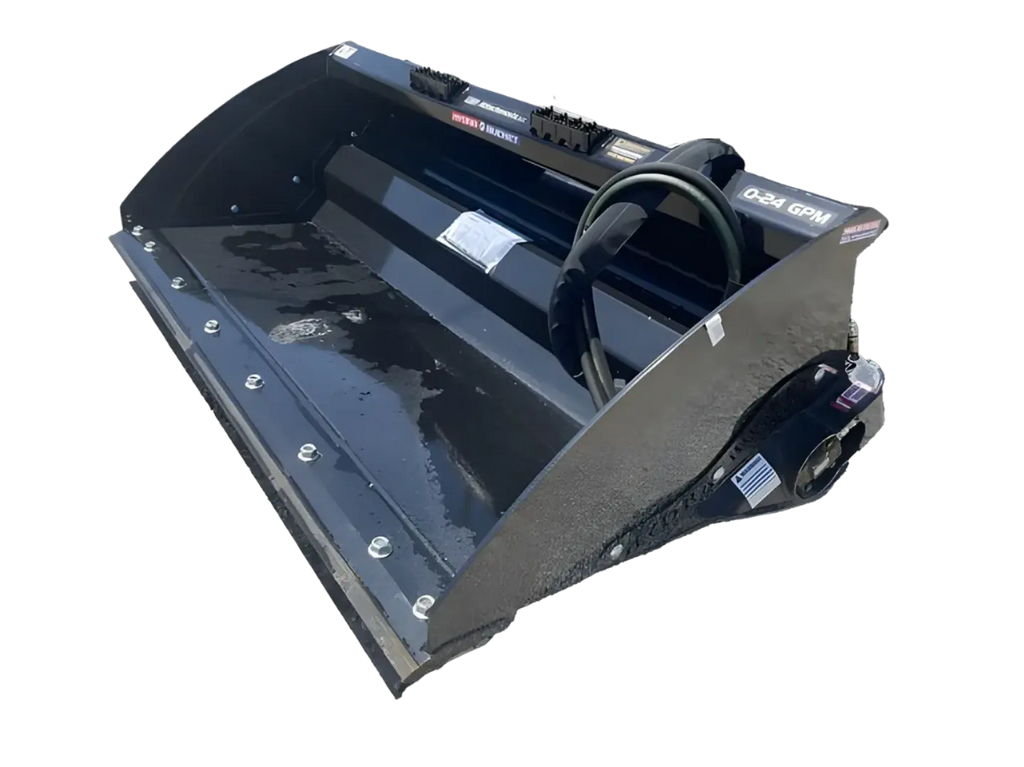

The Hydra Bucket is the most versatile skid steer attachment on the market, acting like a power rake or Harley rake. Designed to efficiently handle a variety of tasks, this bucket is ideal for professionals who need to grade, prep, and level materials on-site.
Its unique features and robust construction make it an essential tool for landscaping, construction, and agricultural applications.
Key Features:
-
Durable Construction: Made from high-strength AR400, AR200, and Grade 50 steel for maximum durability.
-

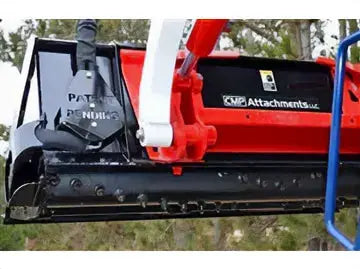

Integrated Hydraulic Motor: Features a Char-Lynn hydraulic motor delivering 6,700 in/lbs of torque, housed inside the drum for ultimate protection.
-
Built for Low/Standard Flow: Only standard flow required, 24GPM max. High flow is not recommended or warrantied, it’s designed to cut in low flow.
-
Triple-Sealed Bearings: 5" oversized ball bearings are triple-sealed to guard against environmental damage.
-

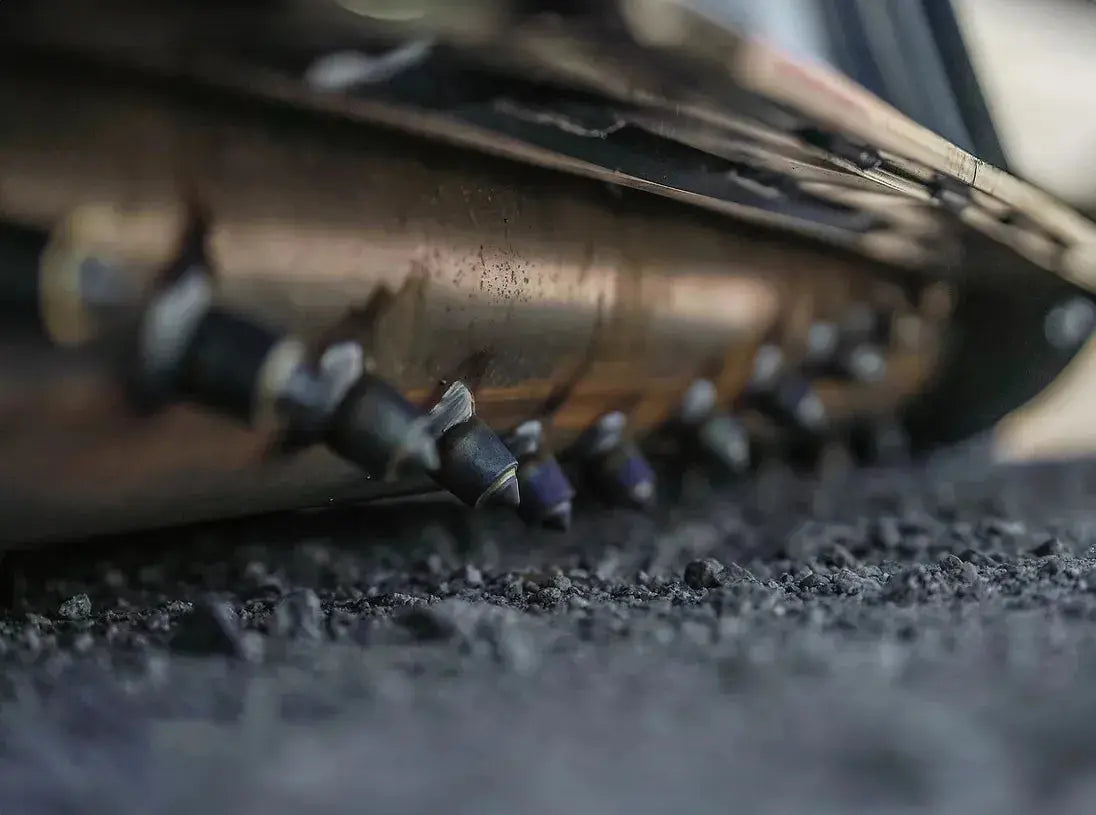

Carbide Teeth: Equipped with ultra-hard carbide cutter teeth on the drum for effective shredding and pulverizing.
-
Dual Cutting Edges: Two cutting edges lead up to the drum, enhancing its material processing capabilities.
-
Crossover Relief Valves: These valves help dampen shocks to the hydraulic system, ensuring smooth operation.
-
Compact Design: The direct-drive motor design protrudes only 2.5" beyond the side plate, offering enhanced control and safety.
Specifications:
-
Models and Dimensions:
-
HB60: 60" width, 10.25 ft³ struck volume, 15.75 ft³ heaped volume, 810 lbs
-
HB66: 66" width, 11.25 ft³ struck volume, 17.5 ft³ heaped volume, 870 lbs
-
HB72: 72" width, 12.375 ft³ struck volume, 19 ft³ heaped volume, 915 lbs
-
HB78: 78" width, 13.375 ft³ struck volume, 20.75 ft³ heaped volume, 960 lbs
-
HB84: 84" width, 14.375 ft³ struck volume, 22.5 ft³ heaped volume, 1,015 lbs
Usage and Benefits: The Hydra Bucket is designed for various applications such as soil conditioning, seedbed preparation, and material leveling. It can effectively handle dirt, gravel, and other materials, making it a versatile tool for different tasks. Its ability to pulverize and shred materials on the go significantly enhances efficiency and reduces the need for multiple attachments.
Customer Testimonials:
-
Ken G. from North Dakota: "We use our Hydra Bucket for grading and prepping fence lines. It's also great in the winter for grinding ice in the barnyard. It’s been a great investment."
-
John D. from Texas: "The Hydra Bucket has significantly improved our efficiency on the job site. It's built tough and handles everything we throw at it."
Warranty Information: Comprehensive 1 year warranty included.
Shipping Information: Flat rate shipping based on your location. (Cost Determined At Checkout Based On Location)
